Milan AWD L4-2.3L (2008)
Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Testing and Inspection / Initial Inspection and Diagnostic Overview

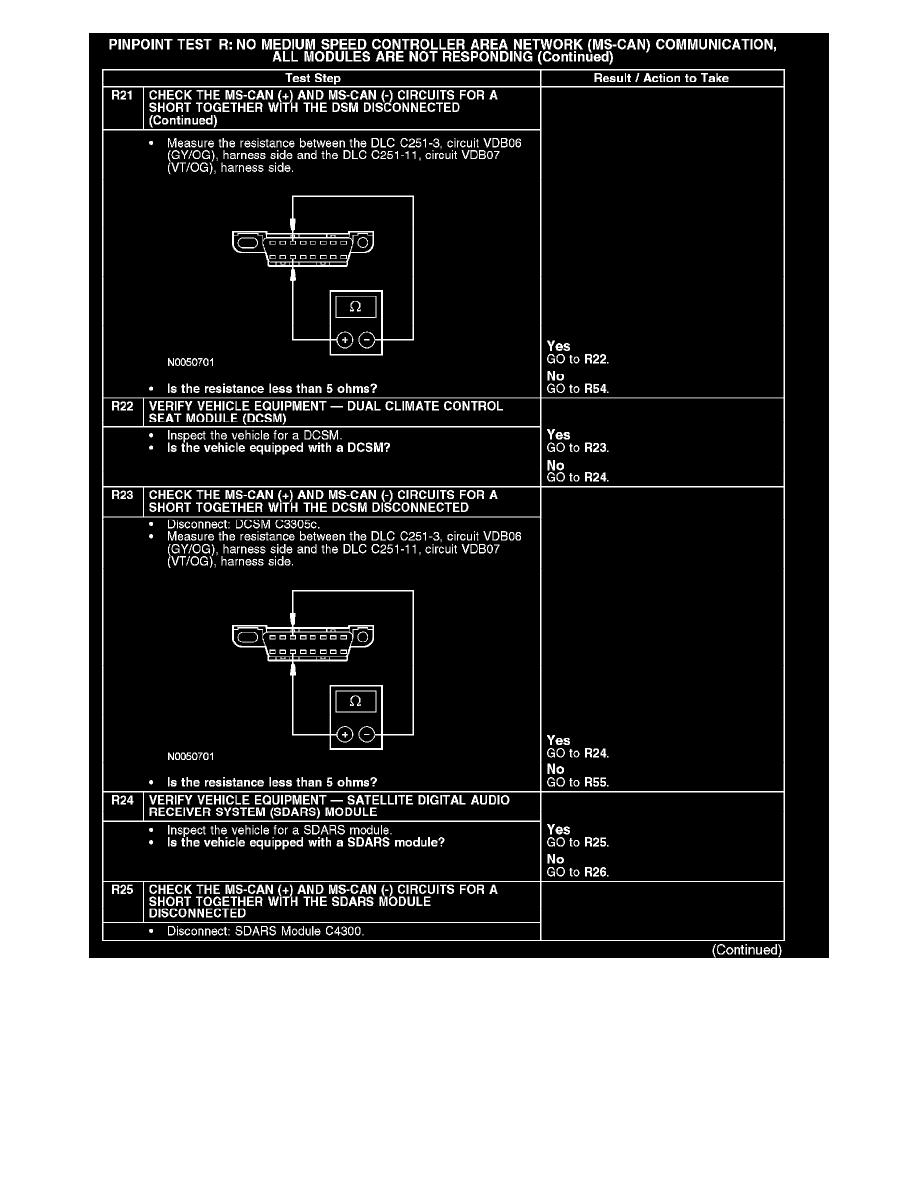

Page 2694
Page 53
R21-R25
Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Testing and Inspection / Initial Inspection and Diagnostic Overview
Page 2694
