Milan AWD L4-2.3L (2008)
Ignition Coil: Service and Repair
IGNITION COIL-ON-PLUG

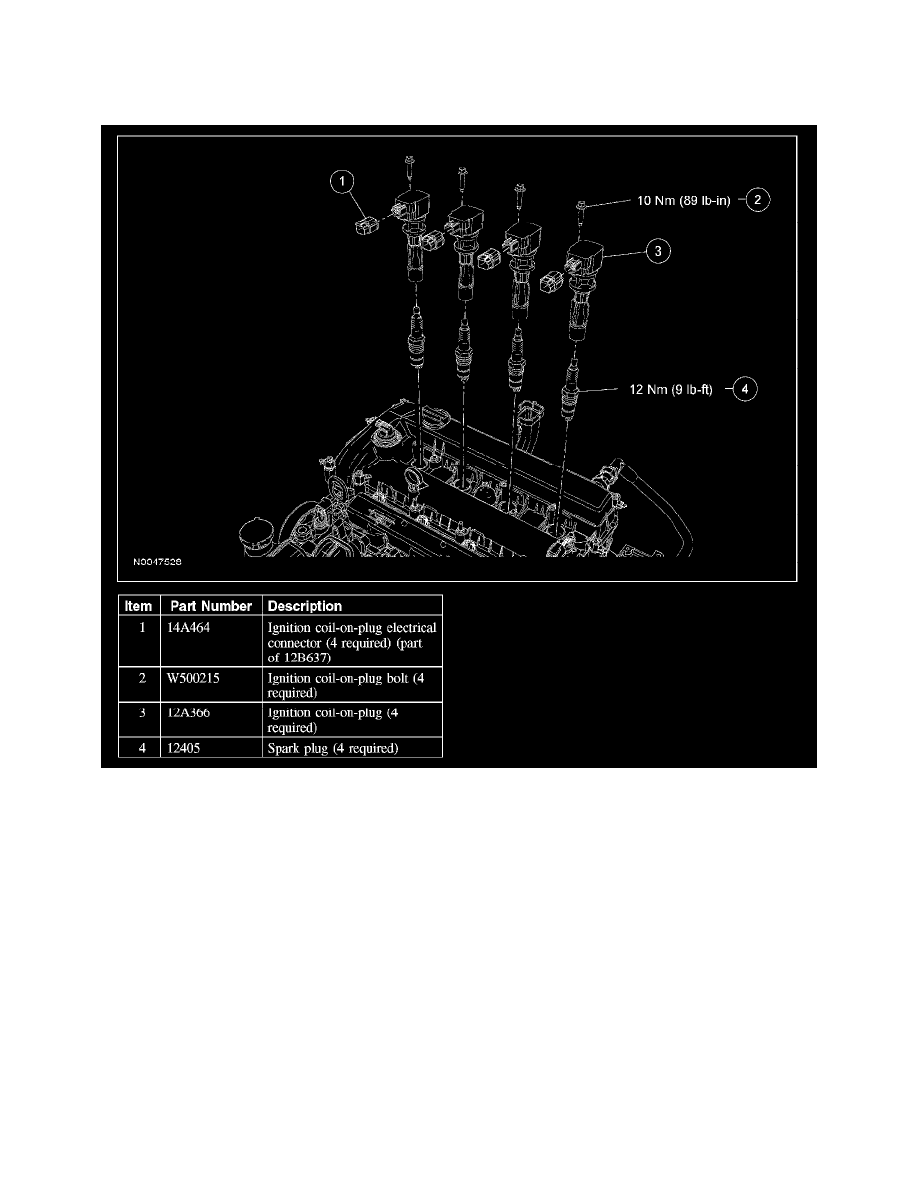

Exploded View
Removal and Installation
1. Remove the 2 nuts, the bolt and the generator air inlet duct.
-
To install, tighten to 6 Nm (53 lb-in).
Ignition Coil: Service and Repair
IGNITION COIL-ON-PLUG
Exploded View
Removal and Installation
1. Remove the 2 nuts, the bolt and the generator air inlet duct.
-
To install, tighten to 6 Nm (53 lb-in).
