Milan AWD L4-2.3L (2008)
For additional information, refer to Air Bag Systems.

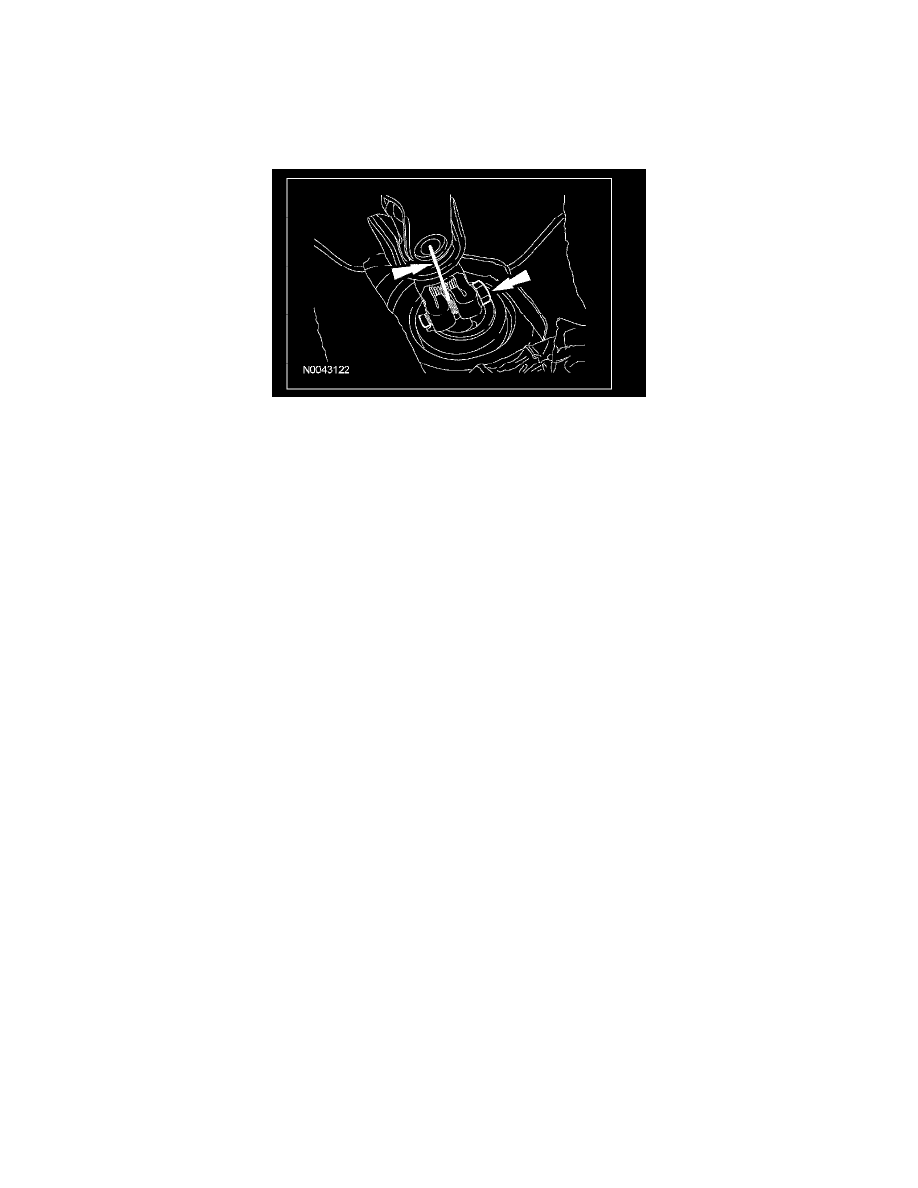

CAUTION: Make sure to correctly align the index marks when installing the steering gear to steering column shaft or unequal
right-to-left turns may occur, causing tire contact with the body and/or clockspring damage.
With the index marks correctly aligned, connect the steering column shaft to the steering gear and install the bolt.
^
Tighten to 25 Nm (18 lb-ft).
19. Install the lower steering column shaft joint cover and the 2 nuts.
20. Fill the power steering system.
21. Check and, if necessary, adjust the front toe.
