Page 12
background image

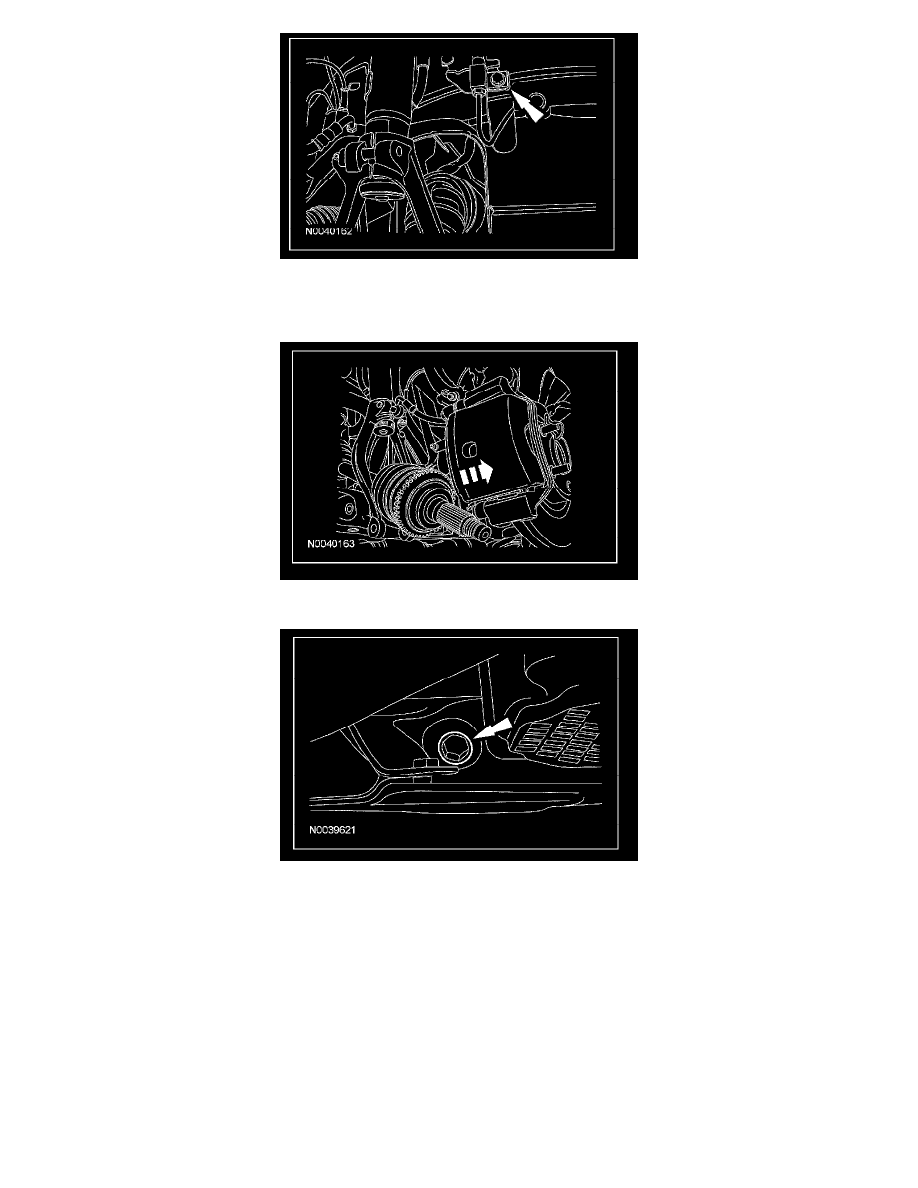

8. NOTE:  Support the knuckle with a suitable jackstand.

Pull the knuckle outboard and rotate it toward the rear of the vehicle.

9. Remove the lower control arm-to-subframe bolt. Remove the lower control arm.

10. Remove the 4 pushpins and position the splash shield aside.
