Mountaineer 2WD V8-4.6L VIN 8 (2006)
Seat Track: Service and Repair
SEAT TRACK

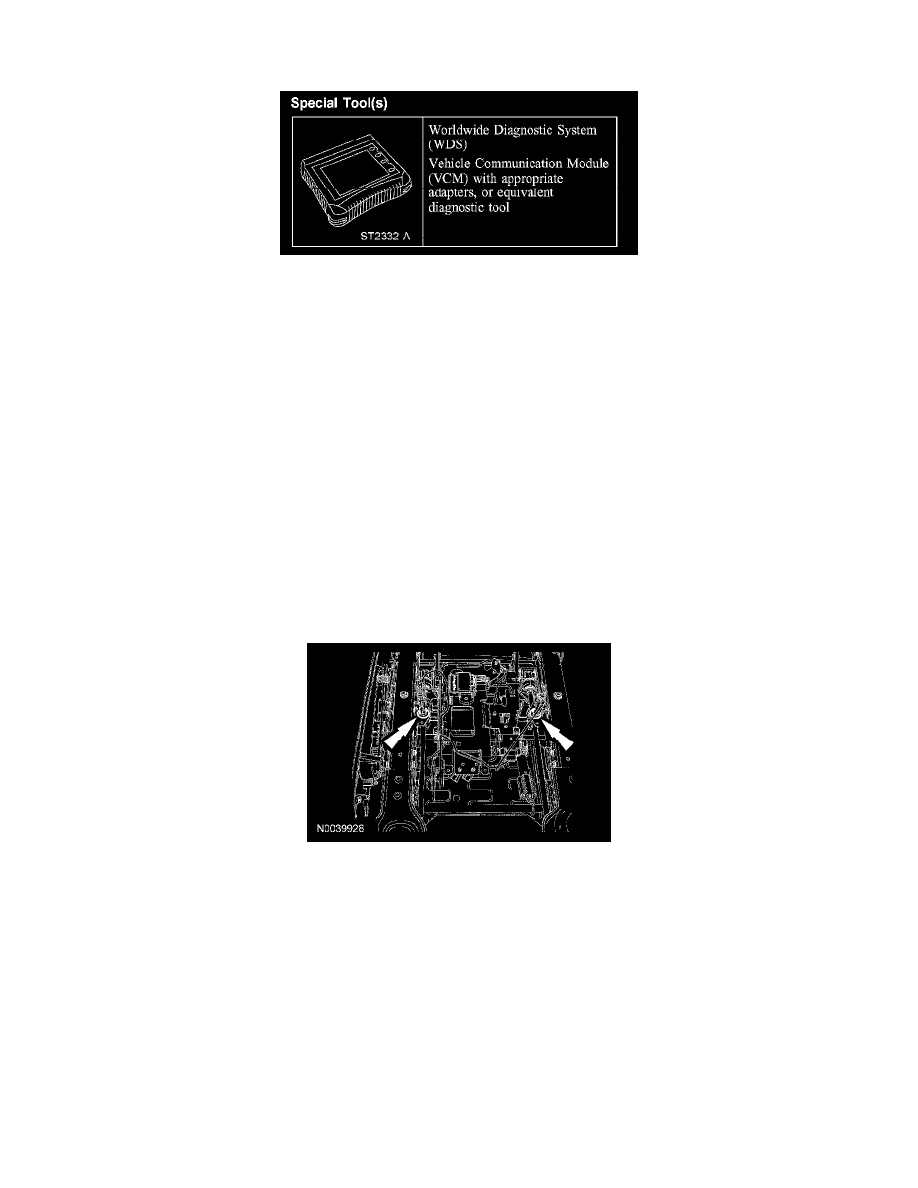

Worldwide Diagnostic System (WDS)
Special Tool(s)
Removal and Installation
WARNING:
-
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module.
This will reduce the risk of injury in the event of an accidental deployment.
-
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
-
If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
-
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate
a supplemental restraint system (SRS) fault.
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seats
1. Remove the front seat and depower the supplemental restraint system (SRS).
Passenger seat with failed horizontal motor
2. To remove the occupant classification sensor (OCS) rails, remove the 2 horizontal screw block bolts. This will allow the power seat tracks to move
independently of each other for access to the 8 OCS rail bolts.
Passenger seat receiving a new seat track
3. Remove the inboard and outboard OCS rails.
Passenger seat not receiving a new seat track
