Mountaineer 2WD V8-4.6L VIN 8 (2006)
Heater Core Case: Service and Repair

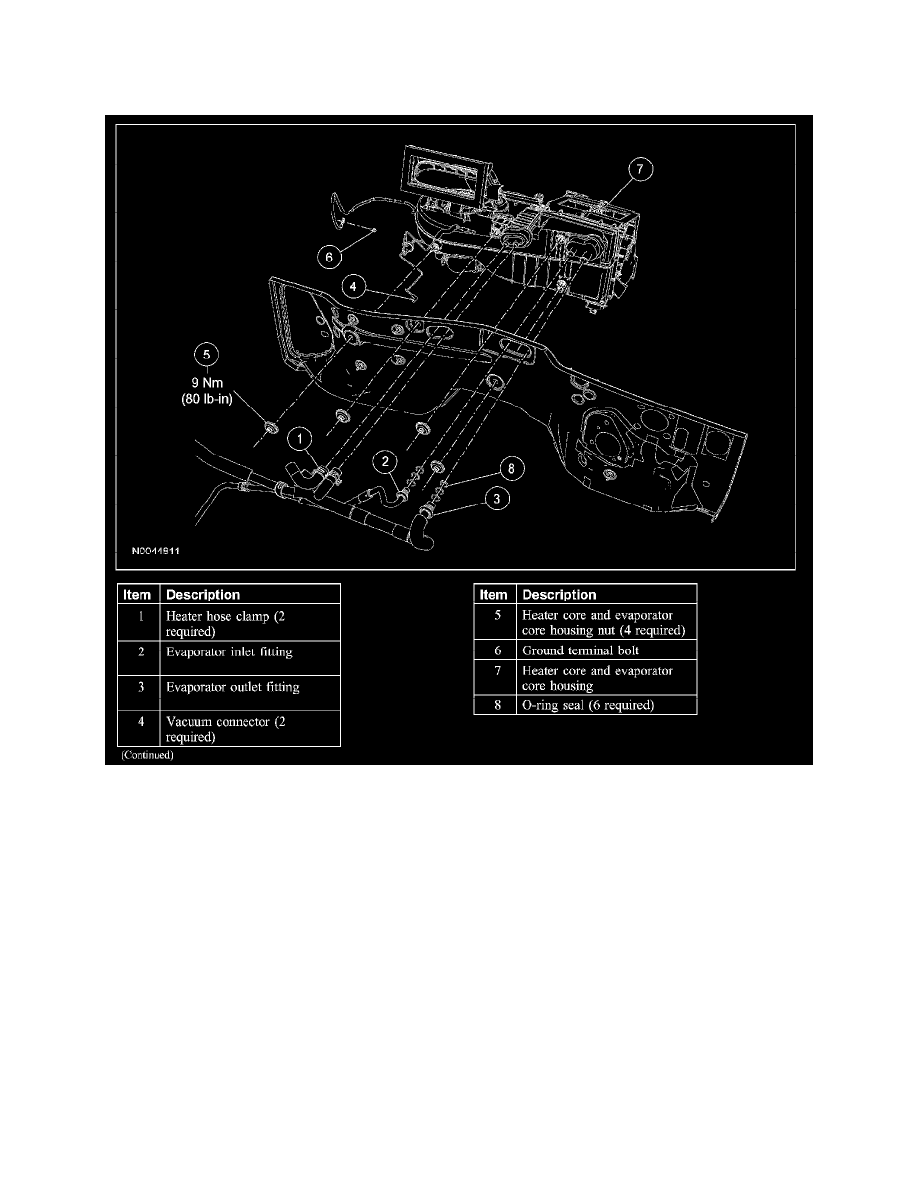

Heater Core and Evaporator Core Housing
HEATER CORE AND EVAPORATOR CORE HOUSING
Removal and Installation
NOTE:
-
If an evaporator core leak is suspected, the evaporator core must be vacuum leak tested before it is removed from the vehicle.
-
Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of
contamination from a failed A/C compressor or damage to the accumulator.
-
Lubricate the coolant hoses with plain water only if needed.
1. Recover the refrigerant.
2. Drain the engine coolant.
3. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, See: Body
and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair
