Sable V6-3.0L DOHC VIN S (2002)

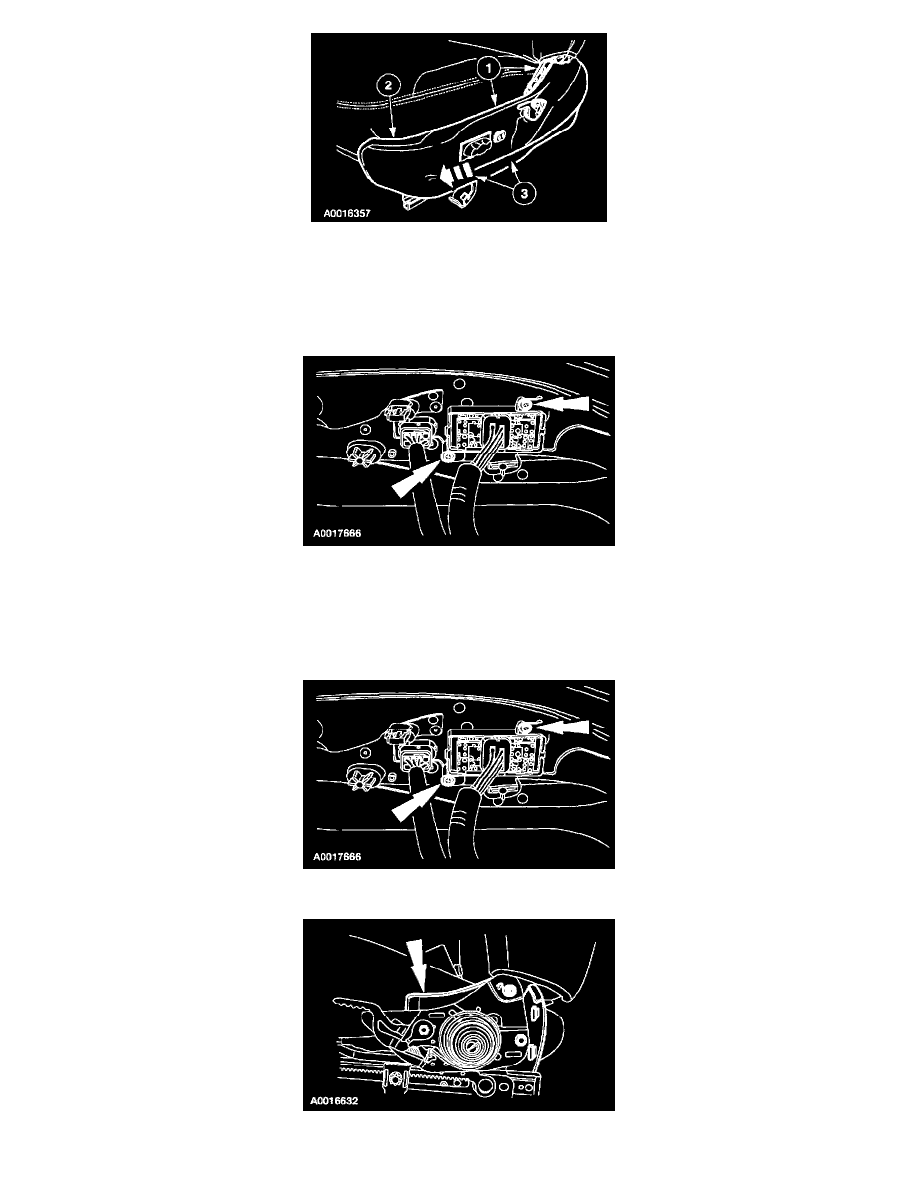

8. Remove the outer side shield.
1
Carefully pull out on the side of the outer side shield releasing the clips to the inner side shield and one hidden clip at the side of the seat
cushion frame.
2
Carefully pull forward on the side shield releasing the hidden clip at the front of the seat cushion frame.
3
While routing the wire harness out of the seat cushion frame, slide the side shield forward to clear the recliner handle and remove the outer
side shield.
9. Remove the screws and the switch.
INSTALLATION
WARNING: TO REDUCE THE RISK OF SERIOUS PERSONAL INJURY, READ AND FOLLOW ALL WARNINGS, CAUTIONS AND
NOTES AT THE BEGINNING OF THE REMOVAL PROCEDURE.
1. Position the switch and install the screws.
2. Position the inner side shield to the seat.
