Sable V6-3.0L DOHC VIN S (2002)
Brake Shoe: Adjustments
Brake Shoe Adjustment - Drums Removed
Brake Shoe Adjustment - Drums Removed

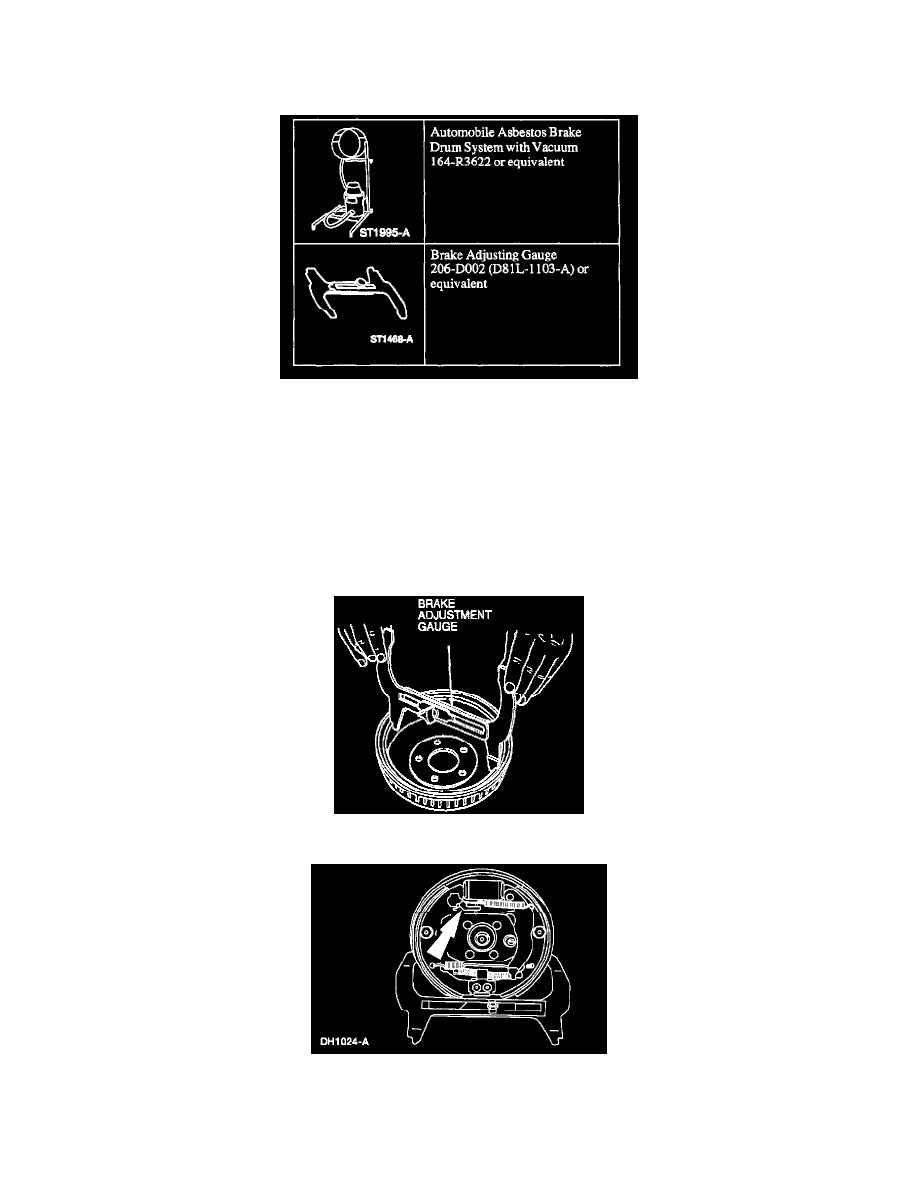

Special Tools
Special Tool(s)
WARNING: Asbestos fiber dust can be present on brake and dutch assemblies and is hazardous to health if inhaled.
Brake and dutch assemblies must be cleaned using a vacuum cleaner recommended for use with asbestos fibers, such as a
brake/clutch/service vacuum. The bag must be labeled per OSHA instructions, sealed, and the trash hauler notified as to the bag's contents.
If a vacuum suitable for asbestos is not available, cleaning must be done wet. If dust generation is still possible, technicians must wear
government-approved toxic dust purifying respirators.
The Occupational Safety and Health Act (OSHA) requires areas where asbestos dust generation is possible to be isolated and posted with
warning. Only technicians performing brake or dutch repair are to be present in the area.
1. Using the special tool, measure the brake drum inside diameter.
2. Adjust the rear brake shoes and linings.
^
Rotate the brake adjuster screw until the rear brake shoes and linings touch the tool.
