Valve Cover Replacement for LH Cylinder Head Assembly on Sable V6-30L DOHC VIN S

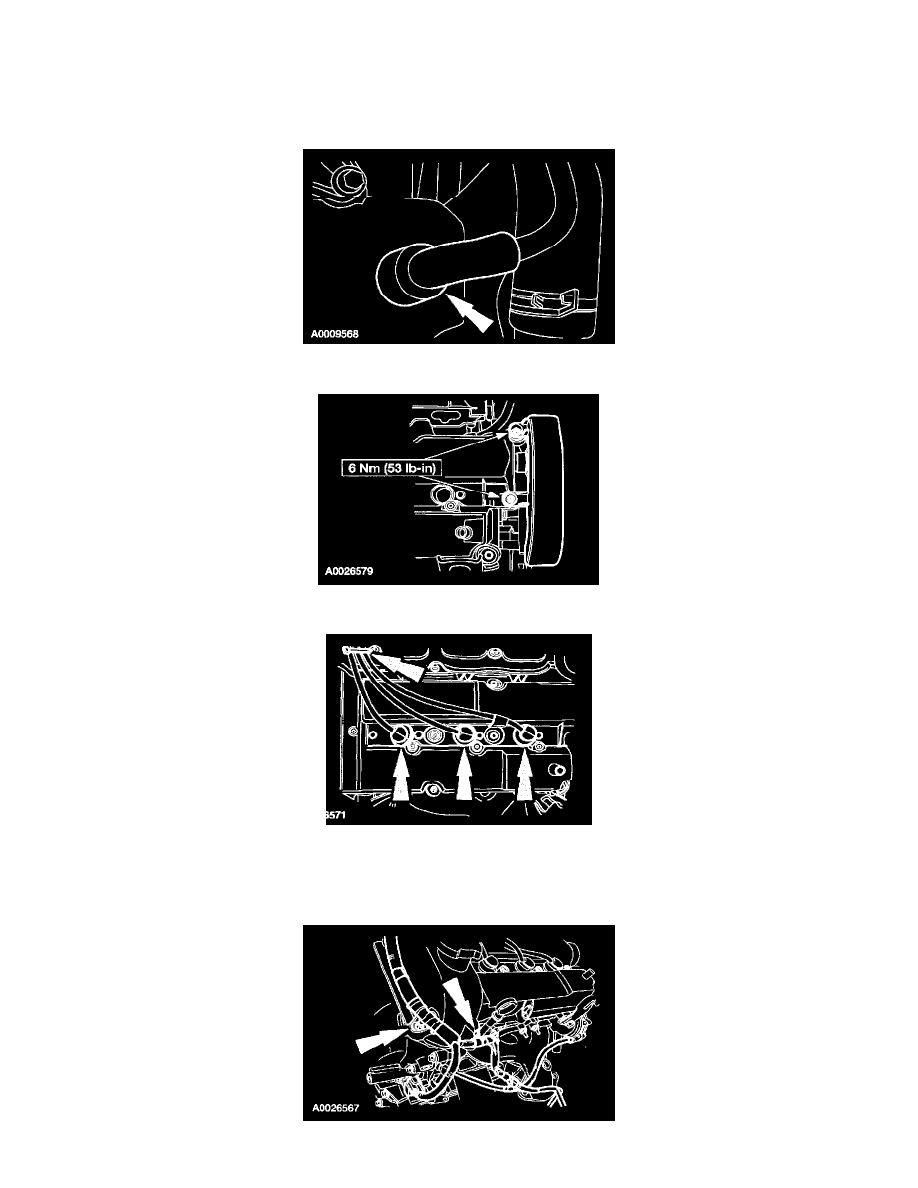

3. NOTE: Engine removed for clarity.
Position the EVAP tube and install the nuts.
4. Connect the crankcase ventilation tube to the valve cover.
5. Position the wiring harness and install the nut. Connect the wiring retainer.
6. Connect the differential pressure feedback EGR electrical connector.
