Sable V6-3.0L DOHC VIN S (2002)
a)
Remove the stop lamp switch retainer pin. Retain the pin for reuse.
b)
Remove the switch and the plastic grommet from the brake pedal/master cylinder pushrod. Discard the grommet.
c)
Disconnect the adjustable pedal motor connector, if equipped, and the speed control deactivation switch.
d)
Disengage the harness push-pin retainers (securing the plastic brace).
e)
Pull the harness out of the steel retention clip (located on the brake pedal bracket above the steering column on adjustable pedal vehicles
only).
f)
Remove any tie straps that secure the harness.
g)
Position the harness over the steering column and down.
NOTE:
^
If the vehicle has not had TSB 02-05-01 performed, go to Step 3, then skip to Step 6.
^
If TSB 02-05-01 has been completed on the vehicle (identified by a splice in the stop lamp switch harness), go to Step 4.
3.

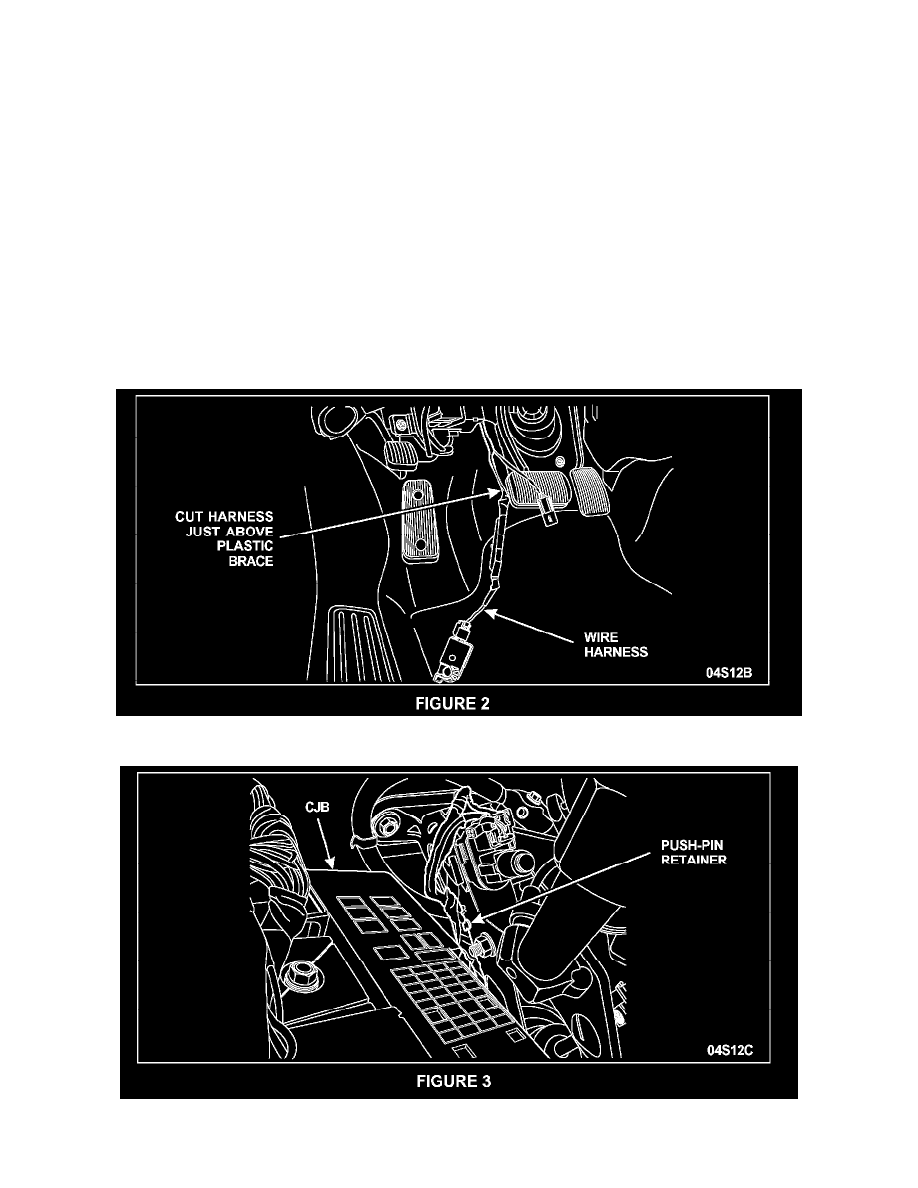

Cut off the stop lamp switch wire harness above the plastic brace and discard the switch and harness. See Figure 2.
4.
It is possible that on some vehicles that have had the TSB performed, the splice may be located very high on the harness and access can be limited.
In these situations, disengage the harness push-pin retainer located on the left side of the brake pedal bracket (next to the central junction box
