Sable V6-3.0L DOHC VIN S (2002)
Throttle Cable/Linkage: Service and Repair
Cable Bracket

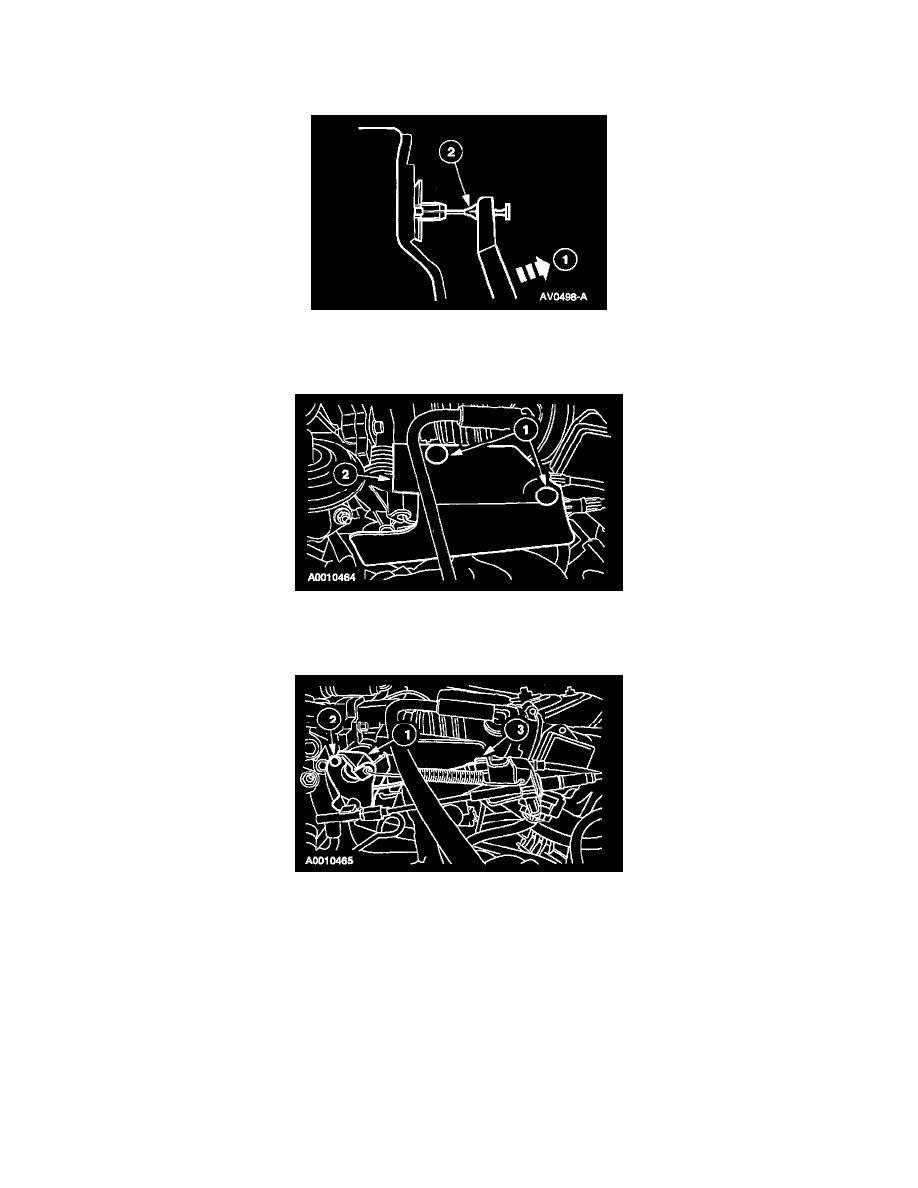

REMOVAL
1. Remove the air cleaner outlet tube.
2. Disconnect the throttle control linkage.
1
Remove the throttle return spring.
2
Disconnect the speed control cable from the throttle cam.
3
Depress the speed control cable tabs and remove the cable from the cable bracket.
4
Disconnect the accelerator cable from the throttle cam.
5
Depress the tabs and remove the accelerator cable from the cable bracket.
3. Remove the accelerator cable bracket.
1
Remove the bolts.
2
Remove the bracket.
INSTALLATION
1. To install, reverse the removal procedure.
