Sable V6-3.0L DOHC VIN S (2002)
1.

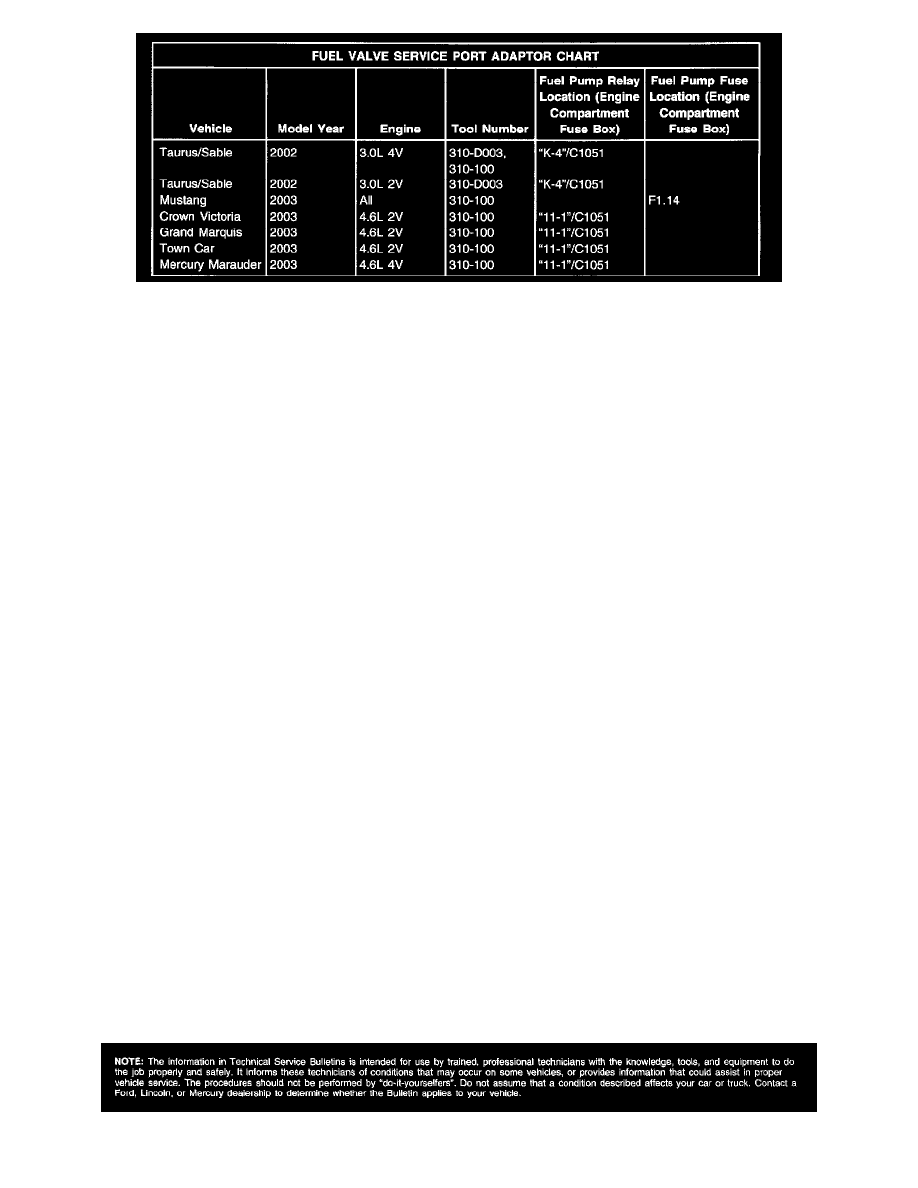

Remove the fuel pump relay or fuse in the engine compartment fuse box. Refer to chart listed in this TSB for fuse location.
2.
Start the engine and allow idling until the engine stalls.
3.
After the engine stalls, crank the engine for approximately five seconds to make sure the fuel injection supply manifold pressure has been released.
4.
Disconnect fuel line at the fuel rail to chassis line pierce point, using special service tool number 310-D005 or equivalent.
5.
Install schrader valve service port adaptor (adaptor spring lock coupling), refer to chart listed in this TSB for service tool number.
6.
Install fuel pressure gage special service tool 310-012 or equivalent.
7.
Install fuel pump relay or fuse.
8.
Cycle key and wait 3 seconds to re-pressurize the fuel system. Check for leaks before starting engine.
NOTE
IT MAY TAKE MORE THAN ONE KEY CYCLE TO RE-PRESSURIZE THE FUEL SYSTEM.
9.
Start and run engine to purge air from fuel system (Air trapped in the fuel system may effect test results).
10.
Perform normal diagnostics and service repairs as needed.
11.
After fuel system service is complete, relieve fuel system pressure using fuel pressure gauge relief valve.
12.
Remove special service tools.
13.
Re-connect fuel system lines.
14.
Cycle key and wait 3 seconds to re-pressurize the fuel system. Check for leaks before starting engine.
NOTE
IT MAY TAKE MORE THAN ONE KEY CYCLE TO RE-PRESSURIZE THE FUEL SYSTEM.
15.
Start engine and check for leaks.
NOTE
IT IS POSSIBLE THAT A DTC MAY BE SET DUE TO THE PUMP RELAY BEING PULLED AND THE ENGINE STARTED AND RUN OUT
OF FUEL. IF DTC'S ARE SET, CLEAR ALL DTC'S BEFORE RETURNING VEHICLE TO THE CUSTOMER.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 404000, 490000, 497000, 499000, 602300, 603300, 607000, 698298
