Sable V6-3.0L DOHC VIN S (2002)
3. Make sure the connector position assurance lever is in the full release position before attempting to connect the connector.

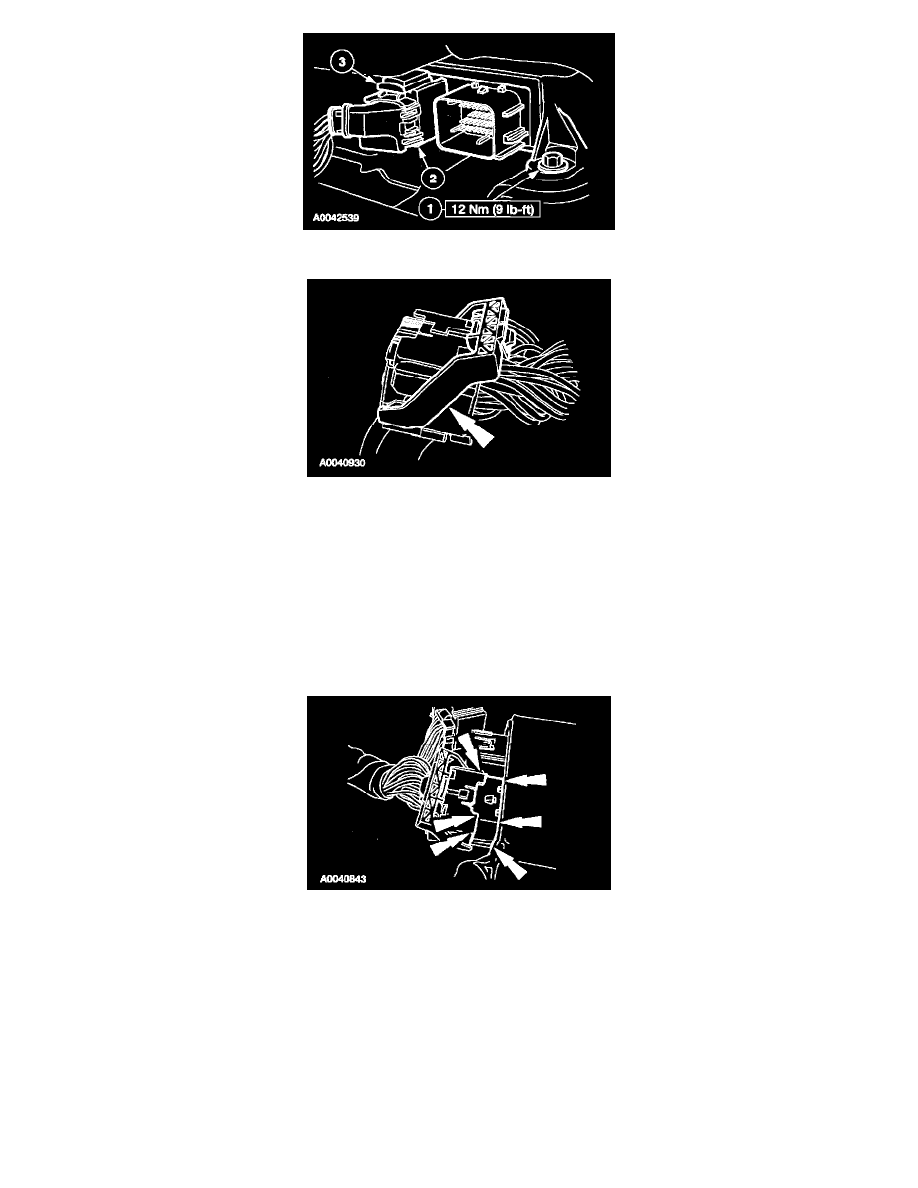

4. CAUTION: Putting the large RCM electrical connector into the RCM on an angle can cause bad electrical connections and damage components.
NOTE: The RCM has been removed for clarity.
Position the large RCM electrical connector into the RCM.
CAUTION: Do not push the connector on to where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the
RCM before using the lever to fully seat the connector.
With the large RCM electrical connector uniformly aligned to the RCM, lightly push in until a subtle audible click is heard and slight resistance is
felt.
5. NOTE:The RCM has been removed for clarity.
Connect the large RCM electrical connector.
Using the connector position assurance lever, pivot it toward the RCM, drawing the connector into the RCM.
Make sure the thumb tab is engaged to the retainer on the RCM and locked in place.
