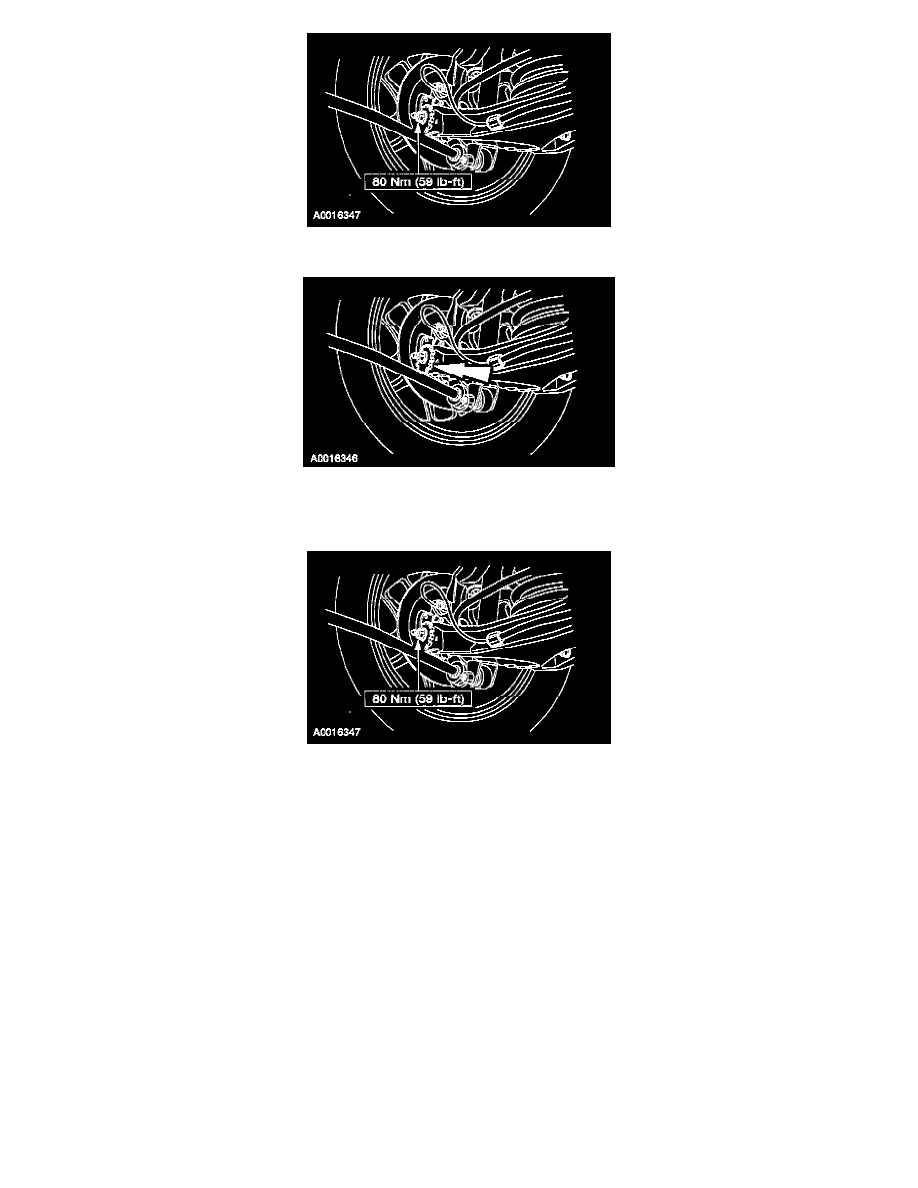

1. Loosen the nut.

2. Rotate the adjusting cam to achieve the specified toe setting.

3. CAUTION:  Make sure that the toe settings are not disturbed while tightening the nut.

While holding the adjusting cam, tighten the nut.
