Sable AWD V6-3.5L (2008)
-
To install, tighten to 25 Nm (18 lb-ft).
5. Remove the passenger side front seat.
6. Remove the front floor console.
7. Remove the LH and RH B-pillar trim panels.
8. Remove the LH and RH C-pillar trim panels.
9. Remove the 3 assist handles.
-
Remove the assist handle screws.

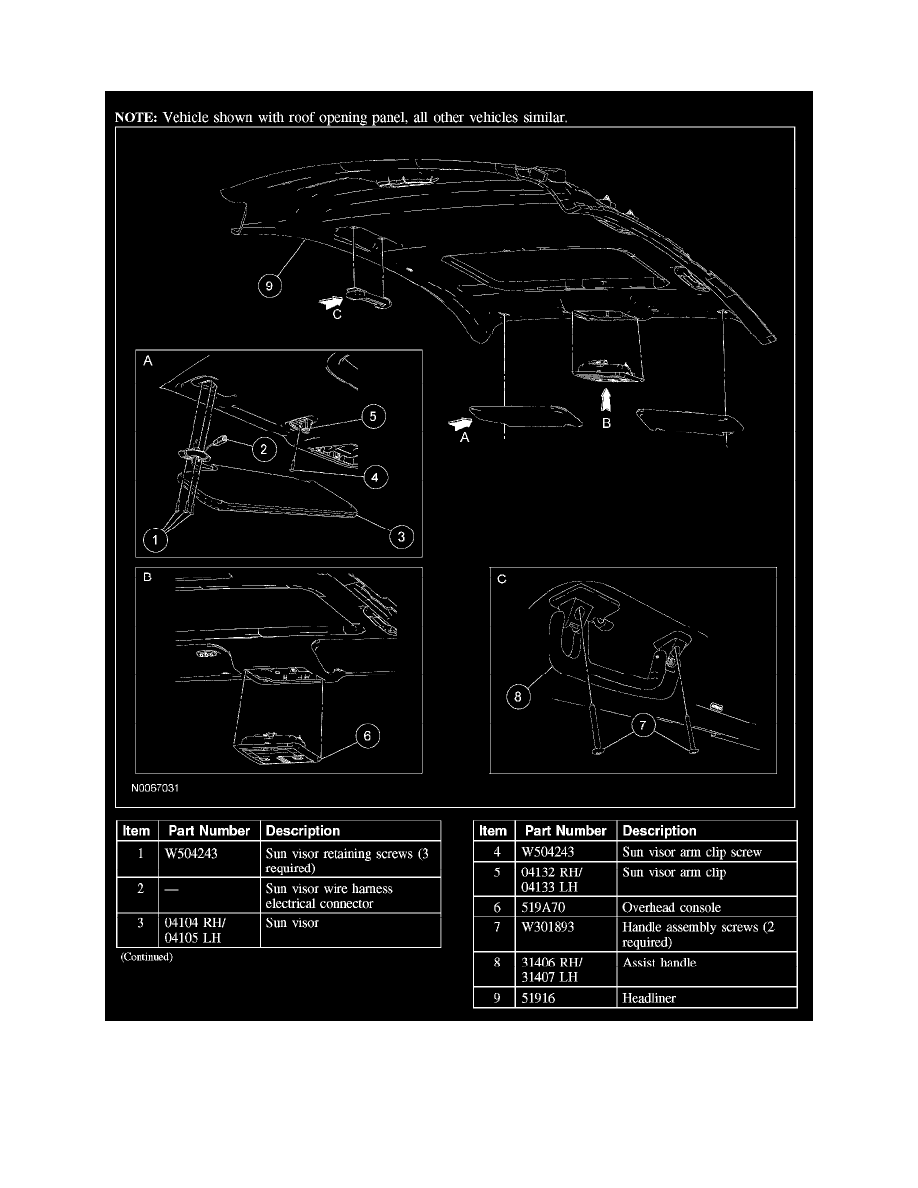

10. Remove the LH and RH sun visor.
-
Remove the 3 sun visor retaining screws.
-
If equipped, disconnect the electrical connectors.
-
Remove the sun visor clip screws.
-
Remove the sun visor clips.
11. Remove the LH and RH sun visor clips.
-
Remove the sun visor clip screws.
12. If equipped, disconnect the roof opening panel trim ring dual-lock from the roof opening panel.
13. If equipped, disconnect the roof opening panel electrical connector.
14. If equipped, disconnect the interior auto-dimming electrical connector.
15. If equipped, disconnect the compass sensor electrical connector.
16. Disconnect the electrical connector located on the A-pillar.
-
Remove the wiring harness pin-type retainers.
17. If equipped, disconnect the safety canopy bridge resistor electrical connector.
18. Remove the 3 trim panel retaining clips from the rear of the headliner.
-
Remove the center retaining clip, using a pushpin puller and the 2 outer clips, using a thin-blade screwdriver to depress the engagement tabs.
19. Position the driver side front seat rearward and recline.
20. Remove the headliner.
-
Lower the headliner.
-
Rotate the headliner 90 degrees clockwise and remove the headliner through the right front door opening.
21. To install, reverse the removal procedure.
