Sable AWD V6-3.5L (2008)
Air Register: Service and Repair
Register - Center

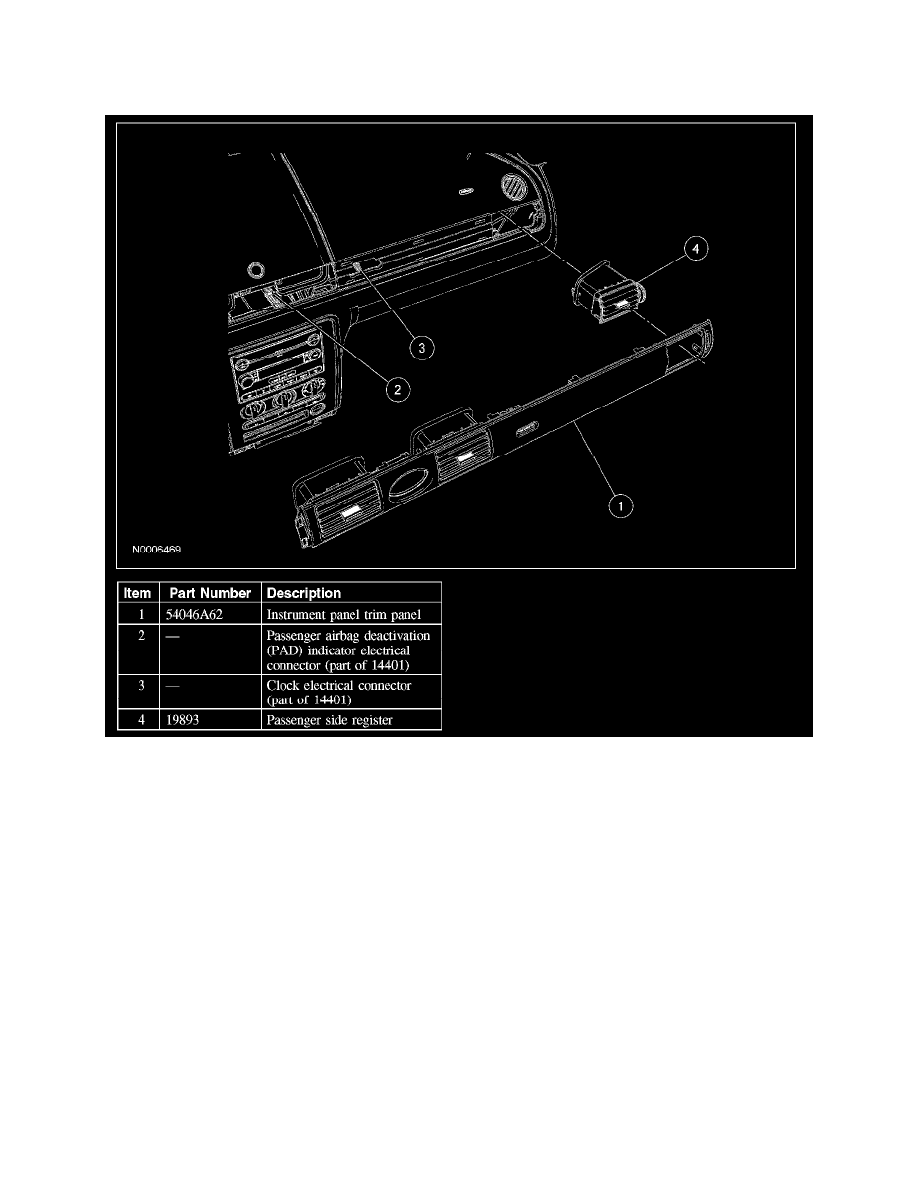

REGISTER - CENTER
Removal and Installation
1. Remove the instrument cluster finish panel.
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the RH center register.
6. Release the 4 clips and remove the LH center register.
7. To install, reverse the removal procedure.
