Sable AWD V6-3.5L (2008)
Second or Third Row Interior Lamp
Removal and Installation

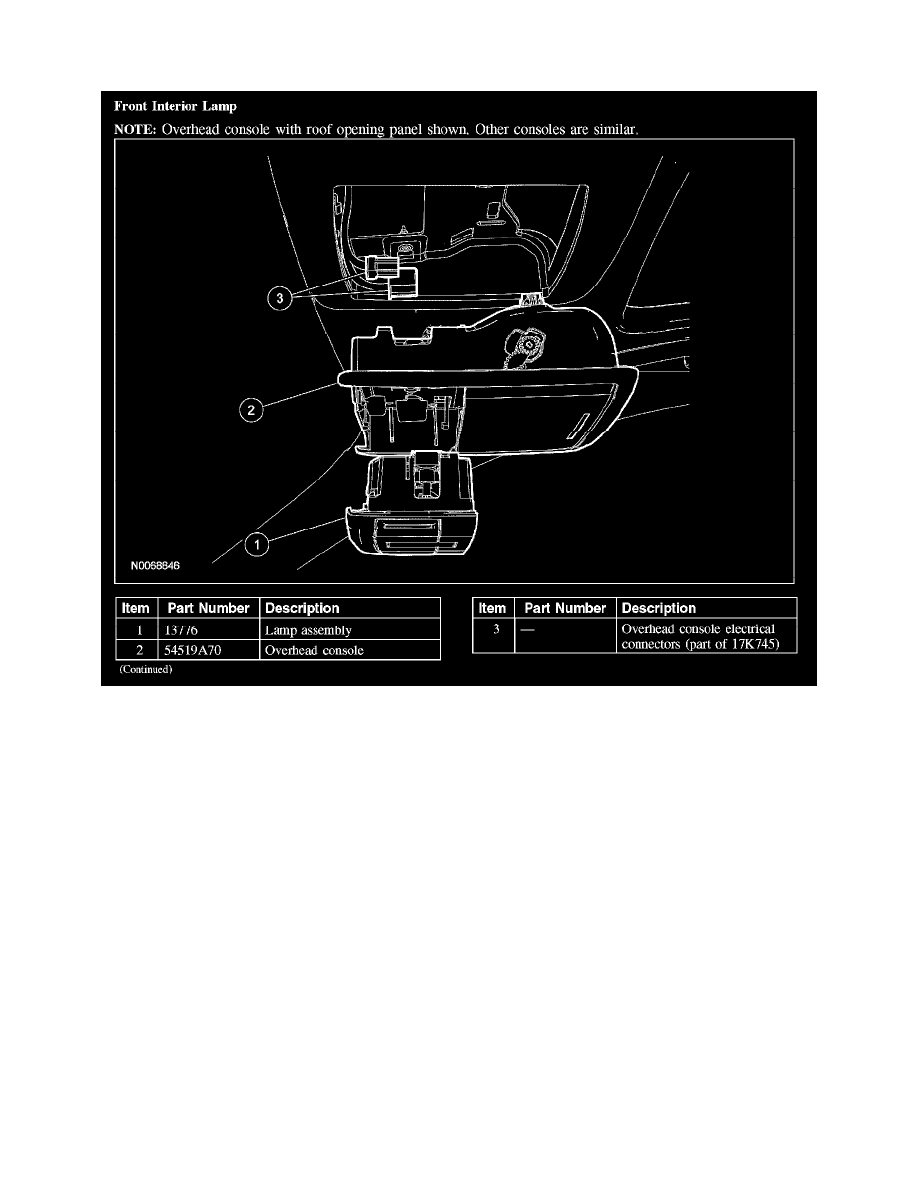

Front Interior Lamp
1. NOTE: Do not pull down on the front of the overhead console.
Pull down on the rear of the overhead console to remove the overhead console from the retaining clips.
-
Disconnect the electrical connectors.
2. Release the 4 retaining clips, and remove the lamp assembly from the overhead console.
3. Release the 6 retaining clips, and remove the lens from the lamp assembly.
-
NOTE: The bulbs can be pushed out from the backside of the lamp assembly.
