Sable AWD V6-3.5L (2008)
ABS Sensor Block: Service and Repair

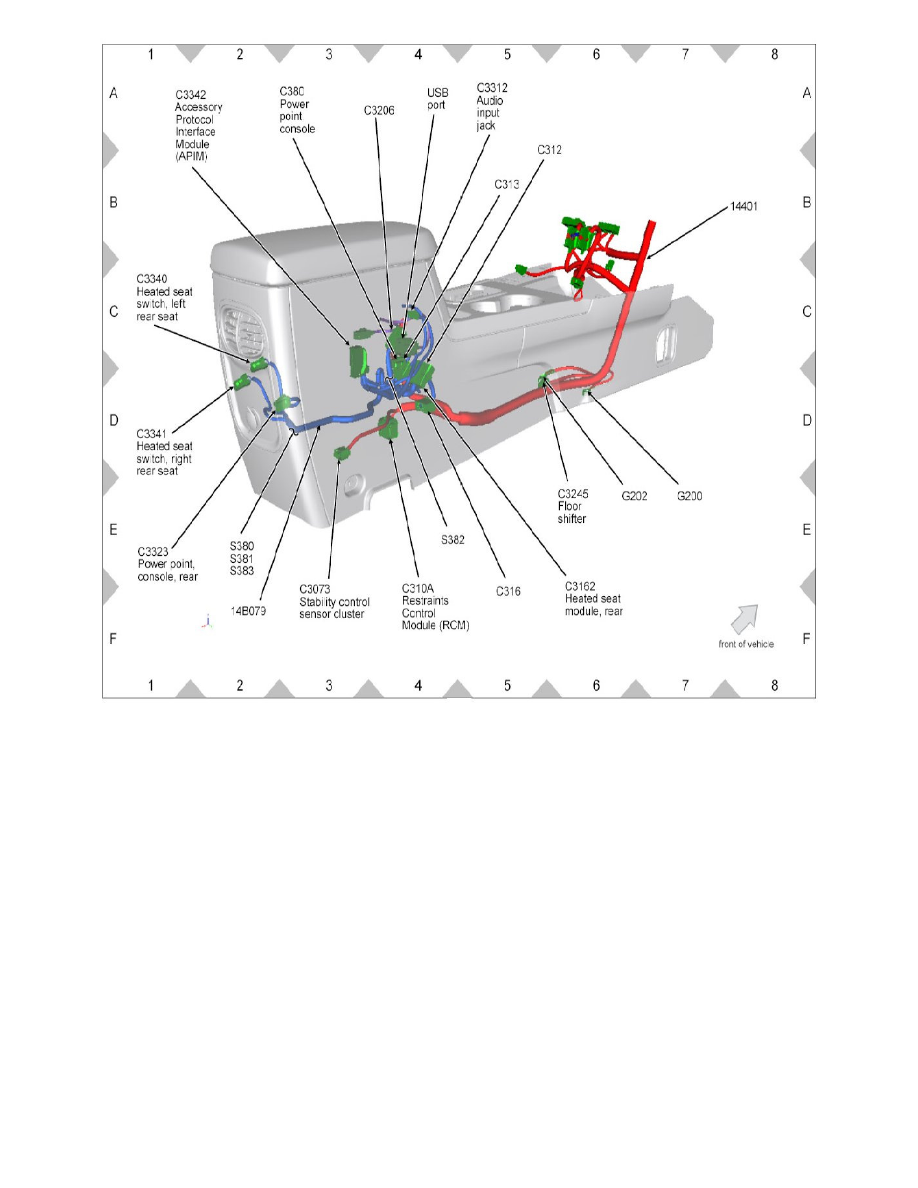

Stability Control Sensor Cluster
Stability Control Sensor Cluster
Removal and Installation
NOTE: When installing a new stability control sensor cluster, the ABS module must be calibrated. Follow the scan tool directions for the calibration
procedures.
1. Remove the front floor console.
2. Disconnect the stability control sensor cluster electrical connector.
3. Remove the stability control sensor cluster electrical harness retainers and position aside.
4. Remove the 2 stability control sensor cluster bracket bolts and the stability control sensor cluster.
^
To install, tighten to 12 Nm (9 lb-ft).
5. To install, reverse the removal procedure.
