Sable AWD V6-3.5L (2008)
Suspension Spring ( Coil / Leaf ): Overhaul
Strut and Spring Assembly
Strut and Spring Assembly
Disassembly and Assembly
WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and
could explode if heated. Failure to follow this instruction may result in serious personal injury.
WARNING: Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow
this instruction may result in serious personal injury.
CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may
result in major service expense. new part with the same part number must be installed if installation is necessary. Do not use a new part of
lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these
parts.

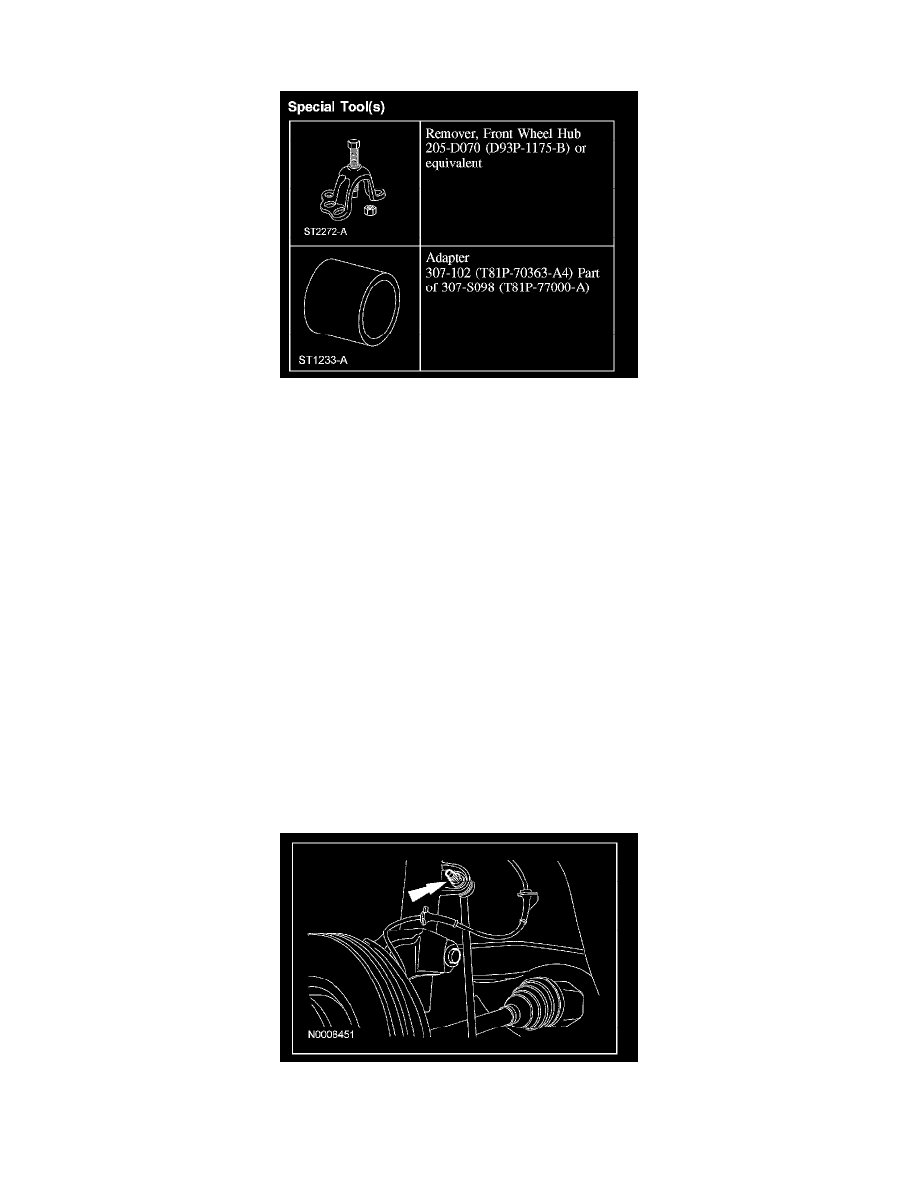

1. Remove the strut and spring assembly.
2. WARNING: Do not attempt to disassemble the shock absorber and spring assembly without using a spring compressor. Assemblies are
under extreme load. Failure to follow this instruction may result in serious personal injury.
