Cooper Convertible (R57) L4-1.6L (N12) (2009)
/l4-1.6l_(n12)/Page-804001.png)
Variable Valve Timing Solenoid: Service and Repair
11 36 655 - Removing and installing/replacing both solenoid valves (N12)
Important!
Always check that the solenoid valves are clean during removal and installation.
Possible malfunction if valves are contaminated:
-
Rough running.
-
OBD fault entry.
-
Exhaust emission behavior.
-
Low engine power.
Necessary preliminary tasks:
-
Remove acoustic cover See: Engine, Cooling and Exhaust/Engine/Service and Repair/Removal and Replacement/Removing and
Installing/Replacing Acoustic Cover

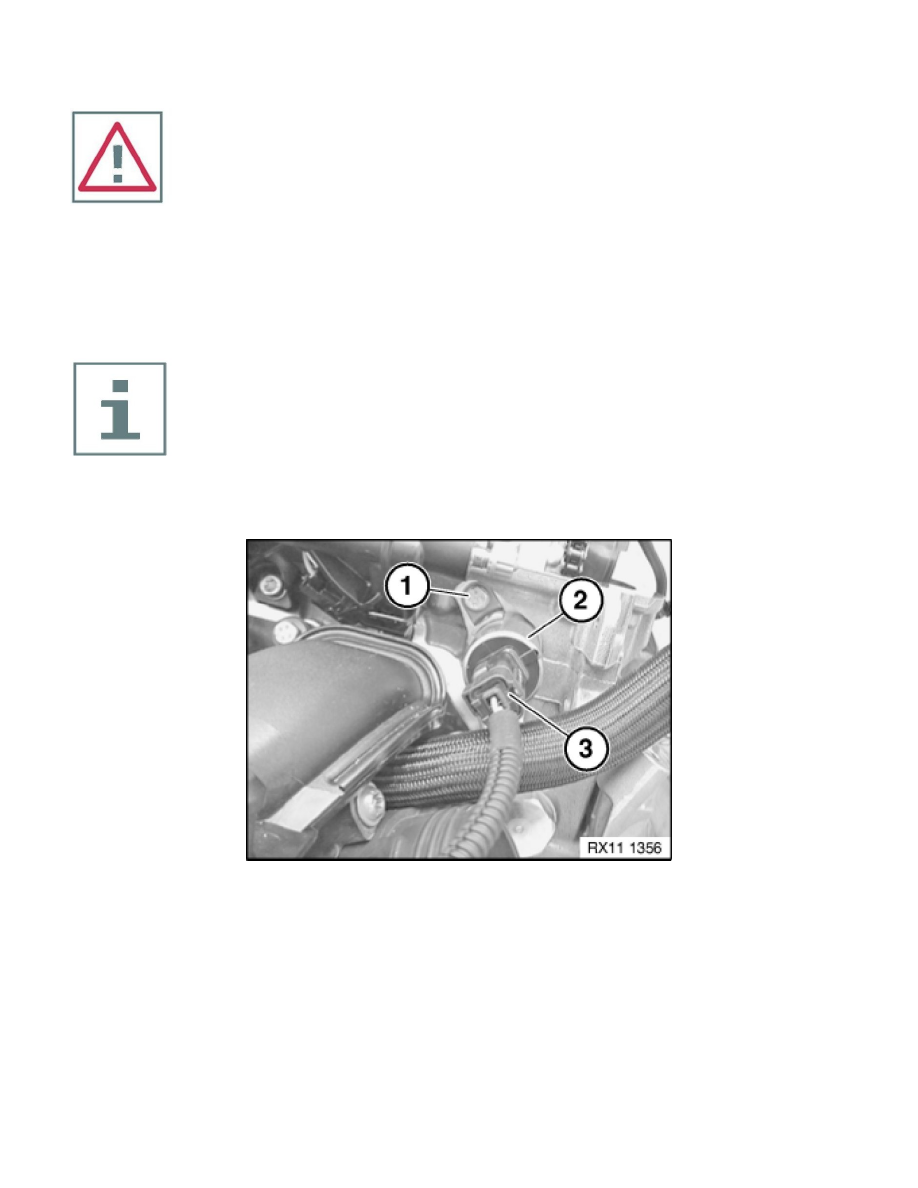

Disconnect plug connection for solenoid valve (3) - inlet.
Release screw (1).
Remove solenoid valve (2) for inlet side.
