Release central bolt (3).
Tighten cylinder head bolts
1AZ Cylinder head bolts
M8x95
Jointing torque 15 Nm
1st angle of rotation ............................................................................................................................................................................................... 90 °
2. Angle of rotation ................................................................................................................................................................................................ 90 °
Note: Replace screws
Important:
Removed cylinder head:
When using special tool 11 9 000, it will be necessary to remove the aluminum profile insert.

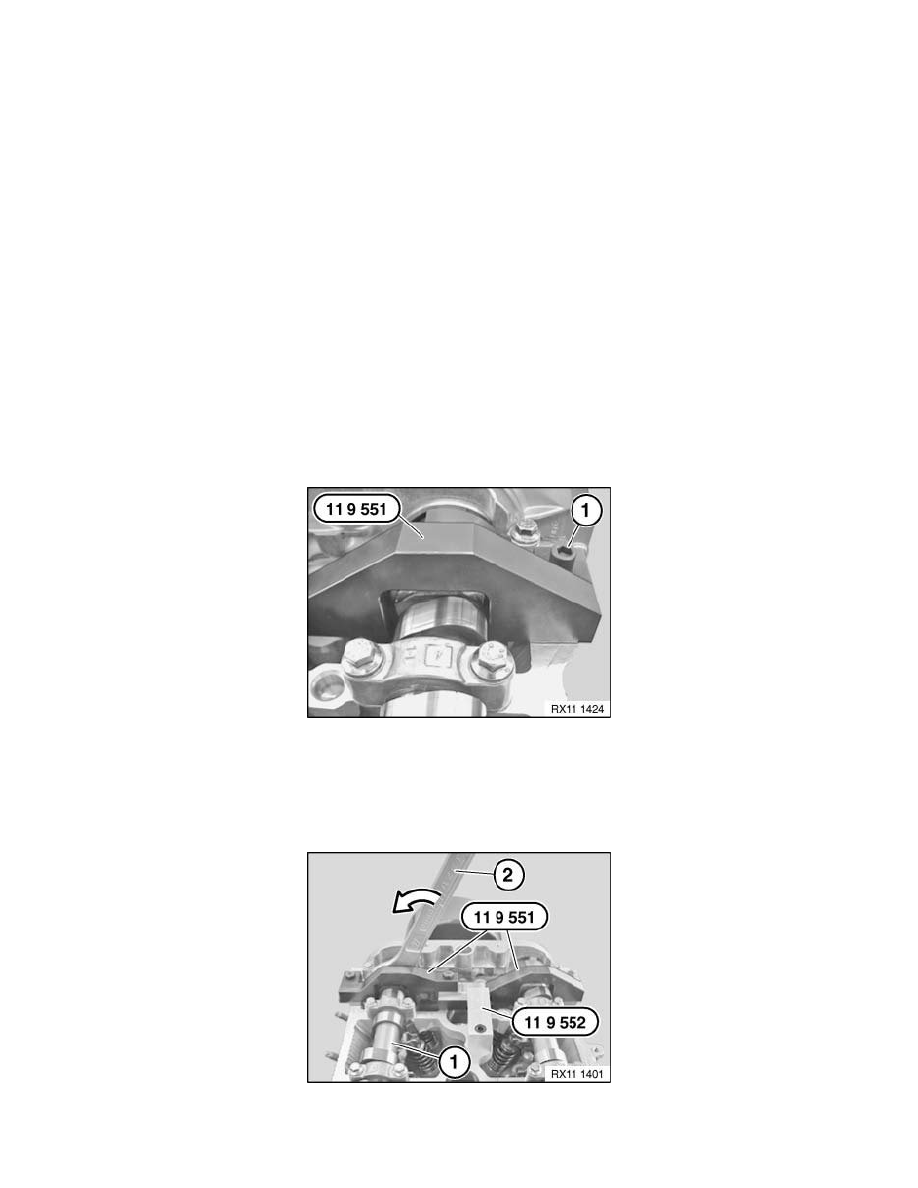

Screw special tool 11 9 661 with special tools 11 9 662 into spark plug holes.
Release all screws on bearing caps (1 and 2).
Tighten exhaust camshaft bearing cap to cylinder head
7AZ Exhaust camshaft bearing cap to cylinder head
M6 ..................................................................................................................................................................................................................... 10 Nm
Bearing cap (1) is a thrust bearing and has the number (0).
All bearing caps (2) are identified with numbers from (1 to 4).
