Eclipse V6-3.8L (6G75) (2006)
/Page-1568002.png)
3.

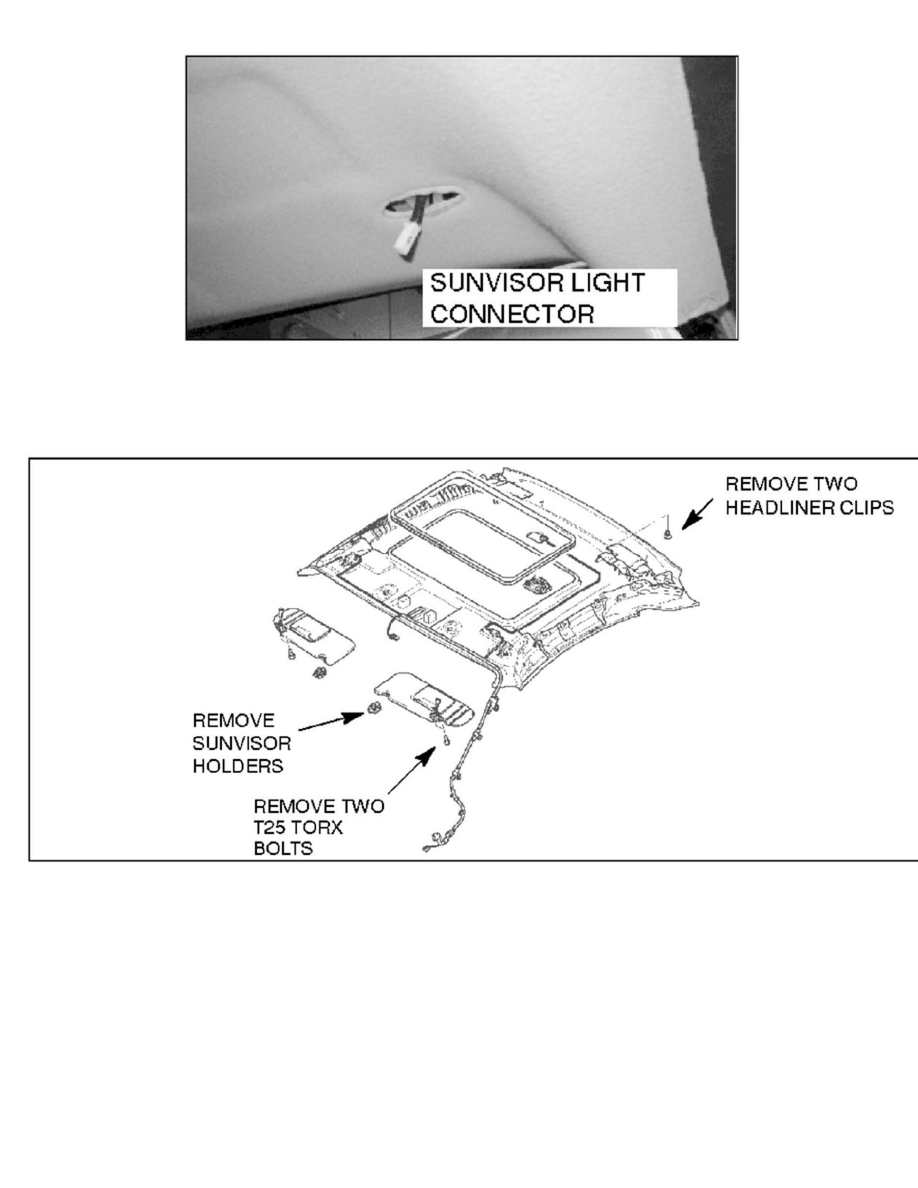

Remove the sunvisors (two 125 Torx bolts) and sunvisor holders. Be sure the sunvisor light connectors remain accessible.
4.
Remove the two rear headliner clips.
5.
Remove the sunroof switch bezel.
6.
Remove the sunroof trim (welt).
CAUTION
Use care to prevent soiling the headliner during removal.
7.
Lower the headliner (suspended with the electrical harnesses still connected). It is not necessary to remove it from the vehicle. Do not disconnect
or remove the electrical harnesses from the headliner.
8.
lower the rear of the sunroof assembly:
