FE120 L4-4.9L DSL Turbo (2005)
Drive Belt: Adjustments

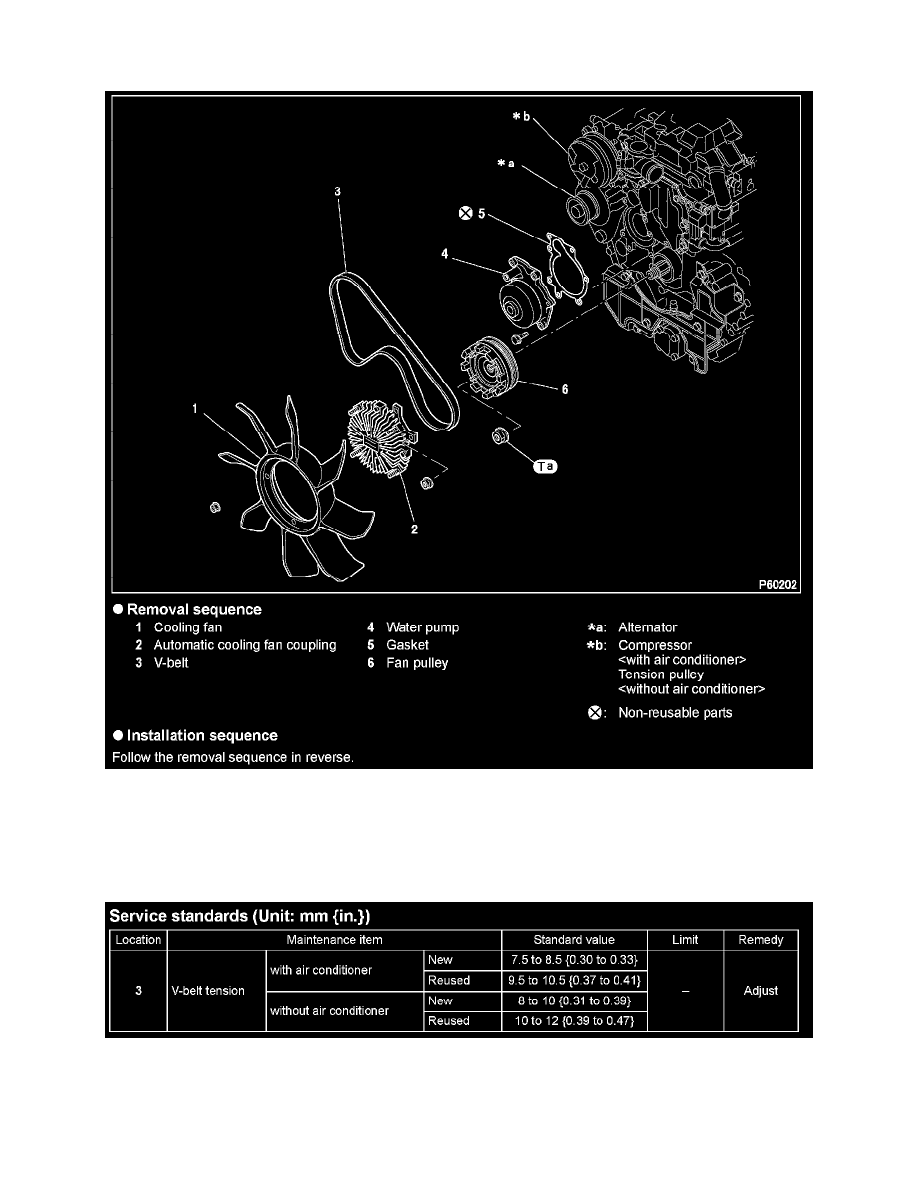

COOLING FAN, V-BELT AND WATER PUMP
CAUTION:
-
The automatic cooling fan coupling and the water pump cannot be disassembled. It must be replaced if defective.
-
Make sure that there is no oil or grease on the V-belts. V-belts soiled with oil or grease may easily slip, resulting in deteriorated
performance of the cooling system.
Service standards (Unit: mm {in.})
Tightening torque (Unit: N.m {ft.lbs, kgf.m})
