Galant L4-1997cc 2.0L SOHC 16 Valve (1993)
Vehicle Speed Sensor: Description and Operation

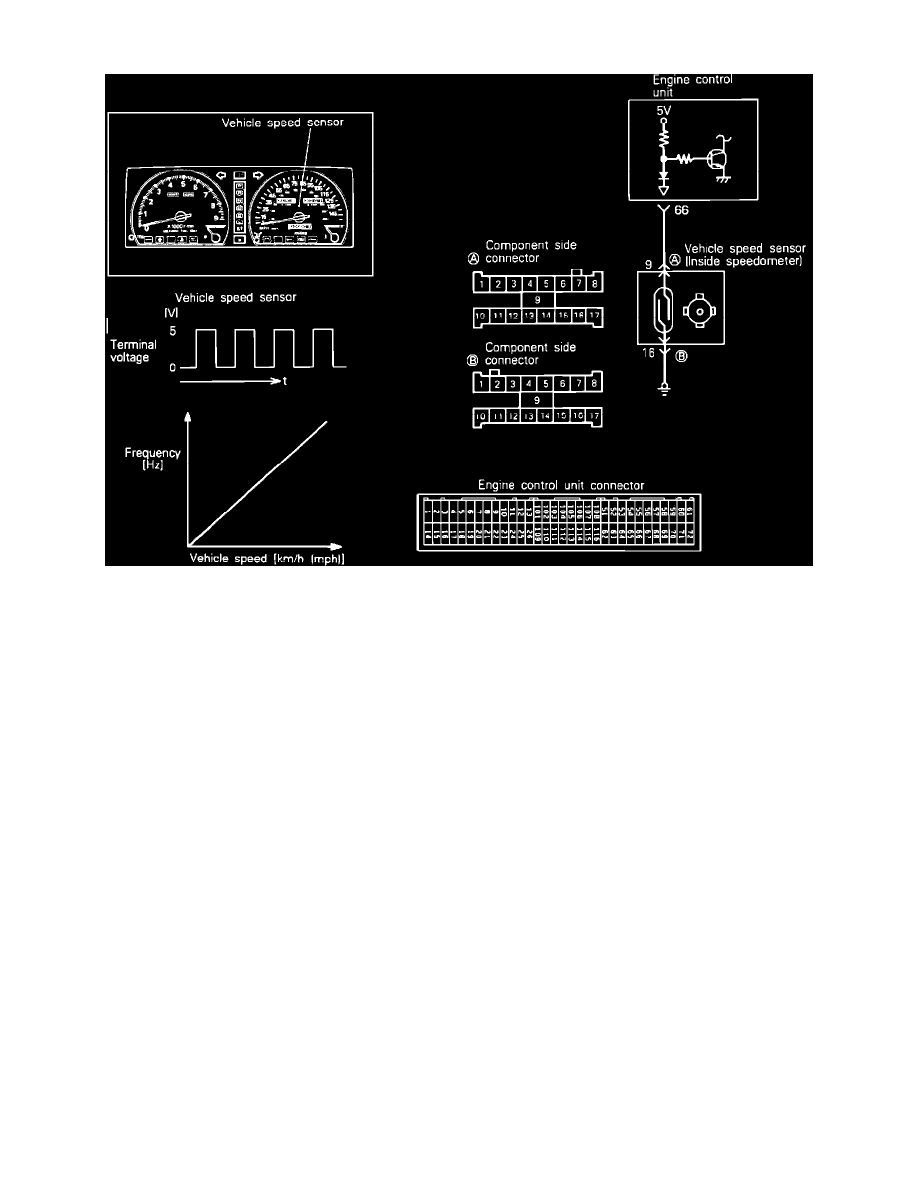

Vehicle Speed Sensor Circuit
OPERATION
The vehicle speed sensor uses a magnetic reed type switch.
As the speedometer cable turns, the switch turns on and off (opening and closing the circuit).
The ECU senses the speed at which this happens as the vehicle speed.
