Ignition Timing Connector: Locations

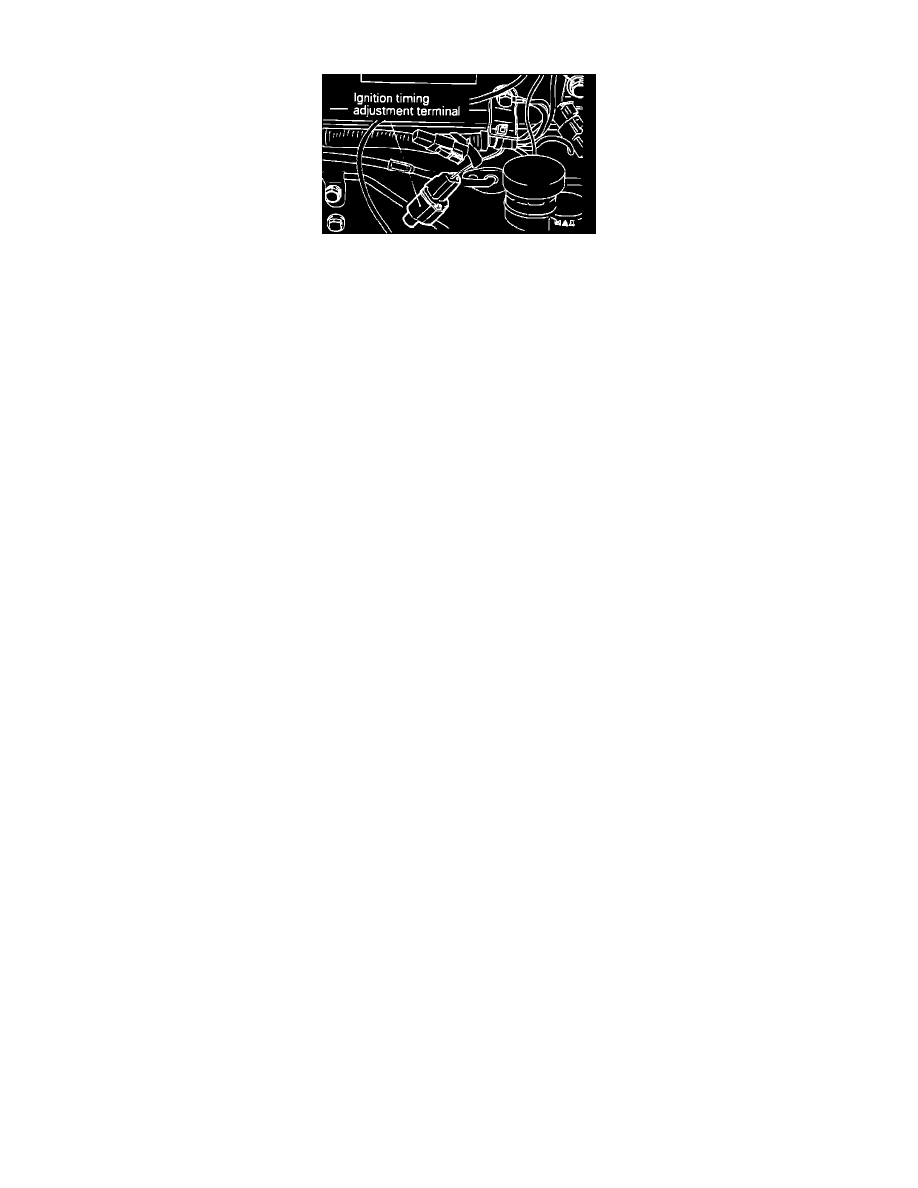

Ignition Timing Adjustment Terminal, Location

Located on left side of engine near master cylinder reservoir
