Galant L4-1997cc 2.0L SOHC 16 Valve (1993)
Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Main Relay (Computer/Fuel System) / Component Information
Diagrams / Diagram Information and Instructions
Page 632
Page 4

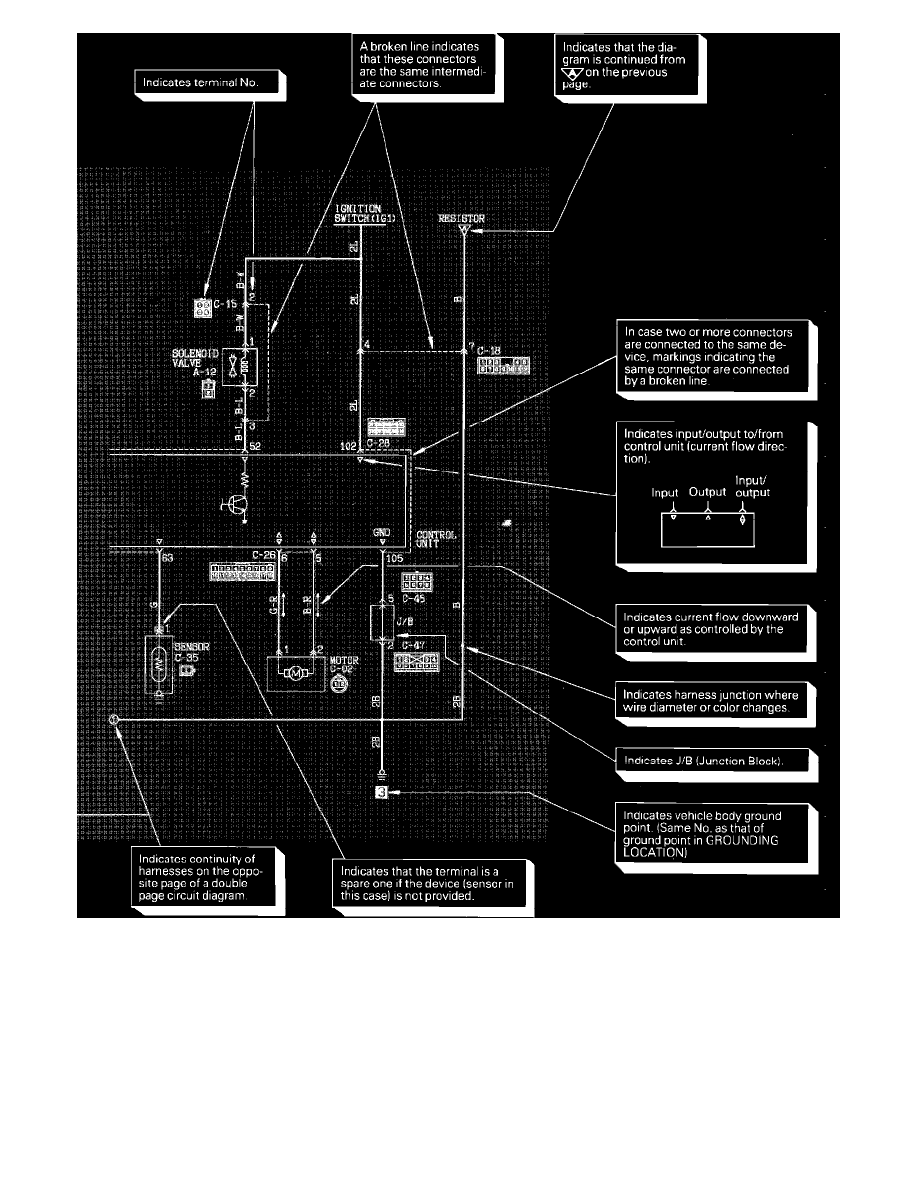

How To Read Electrical Diagrams (Part 2 of 2)
Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Main Relay (Computer/Fuel System) / Component Information
Diagrams / Diagram Information and Instructions
Page 632
