Galant L4-1997cc 2.0L SOHC 16 Valve (1993)

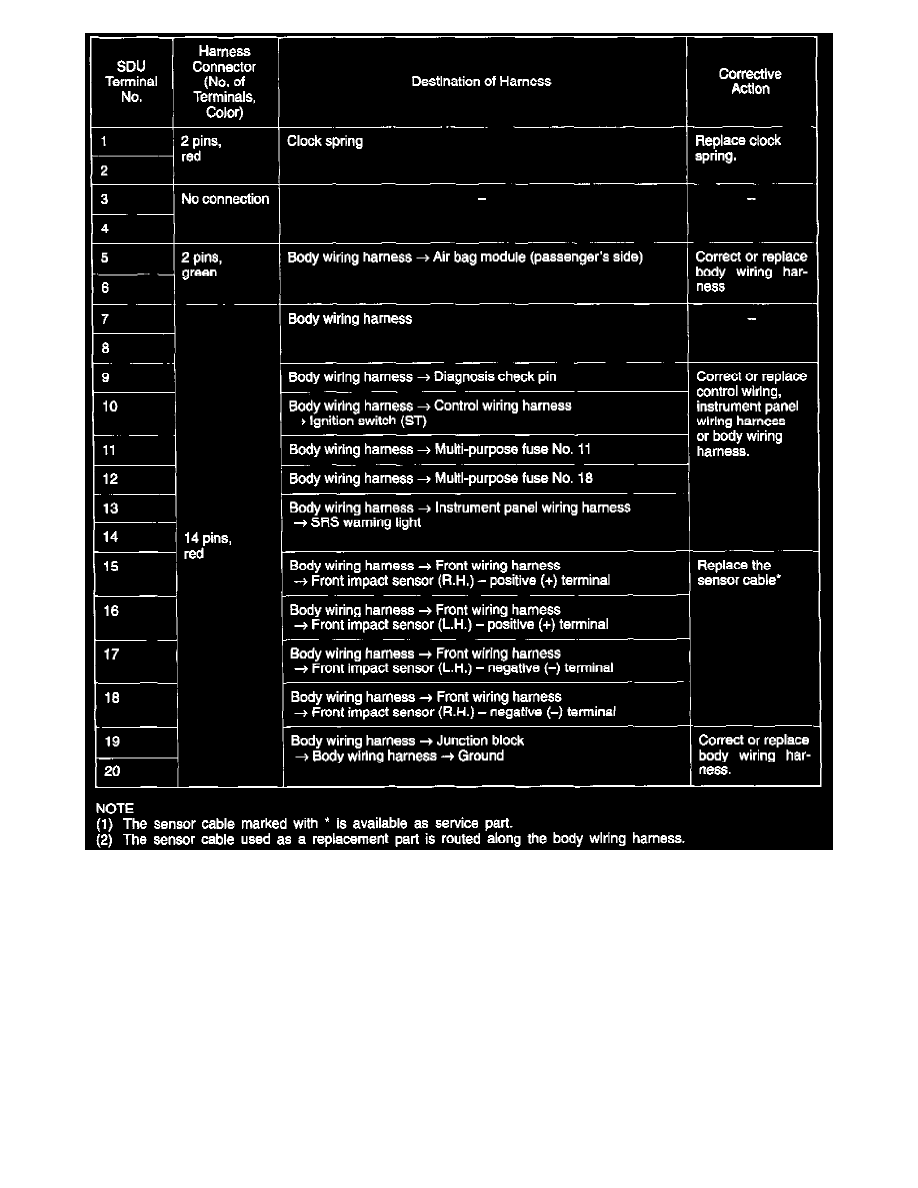

Fig. 1 SRS Wire Service Chart
6. Do not attempt to repair SRS wiring harness connectors. Replace harness if any connectors are diagnosed as faulty. If wires are diagnosed as
faulty, replace or repair harness according to tables shown in Fig. 1.
7. After disconnecting battery cable, wait 60 seconds or more before beginning repair procedures.
8. SRS components should not be subjected to heat over 200°F. Remove front impact sensors, SRS diagnosis unit, air bag module and clockspring
before drying or baking vehicle after painting.
9. Do not paint air bag to correct cosmetic flaws. Replacement is necessary to correct such flaws.
10. Inspect SRS warning lamp operation to ensure system is functioning properly when service is complete.
ARMING
1. Ensure no one is inside vehicle.
2. Connect battery ground cable and start engine.
3. Ensure SRS warning lamp lights for approximately seven seconds, then goes off and remains off for at least 45 seconds.
4. If lamp operates as described, SRS is functioning properly.
5. If lamp does not operate as described, an SRS malfunction is indicated. Diagnose and repair as necessary.
