Lancer L4-2.4L SOHC (2005)
Starting and Charging
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution / Relay Box / Component Information

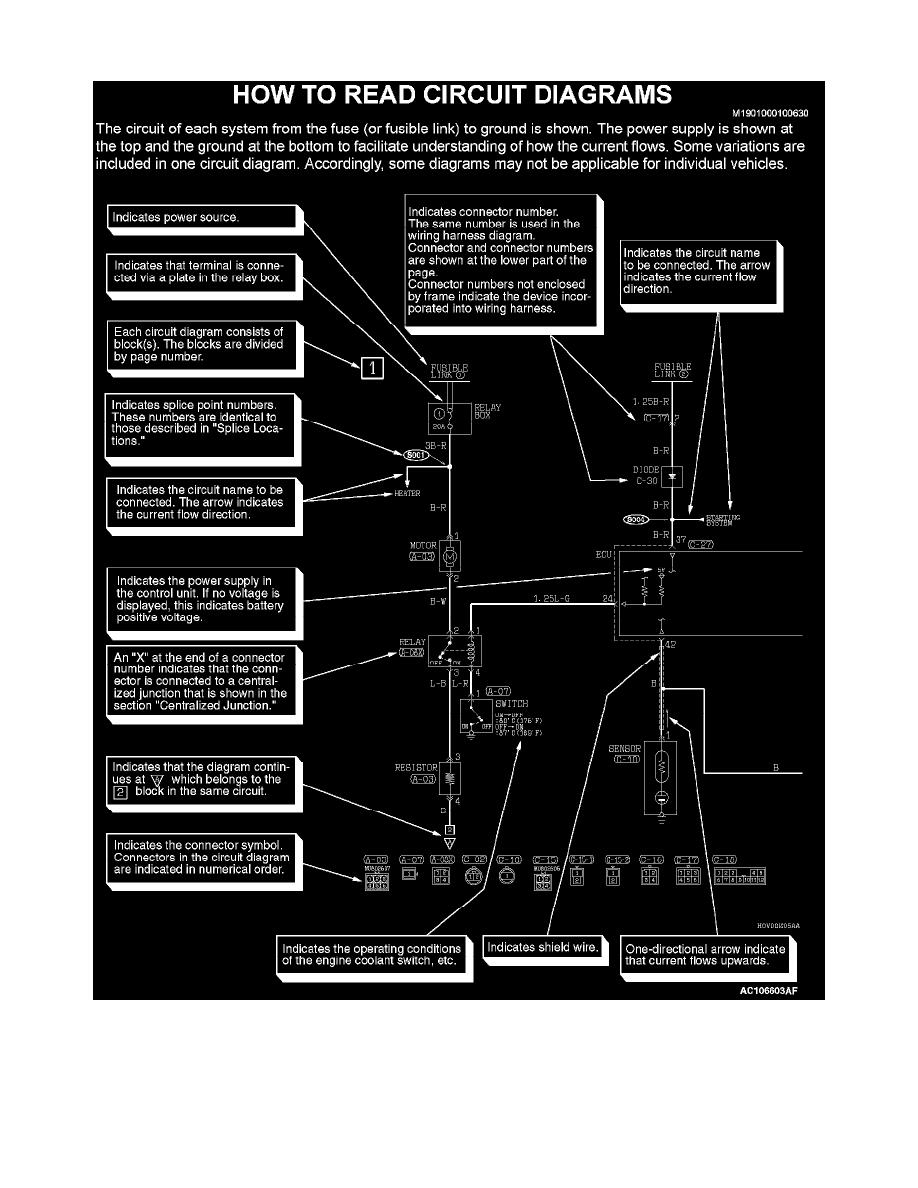

Diagrams / Diagram Information and Instructions
Page 4099
Page 6
Starting and Charging
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution / Relay Box / Component Information
Diagrams / Diagram Information and Instructions
Page 4099
