Montero V6-3.8L SOHC (2005)
Fog Light Circuit Part 2
TECHNICAL DESCRIPTION (COMMENT)
If one of the fog lights does not illuminate, the fog light relay or the fog light bulb may be defective. If the fog light indicator light does not illuminate,
the combination meter may be defective.

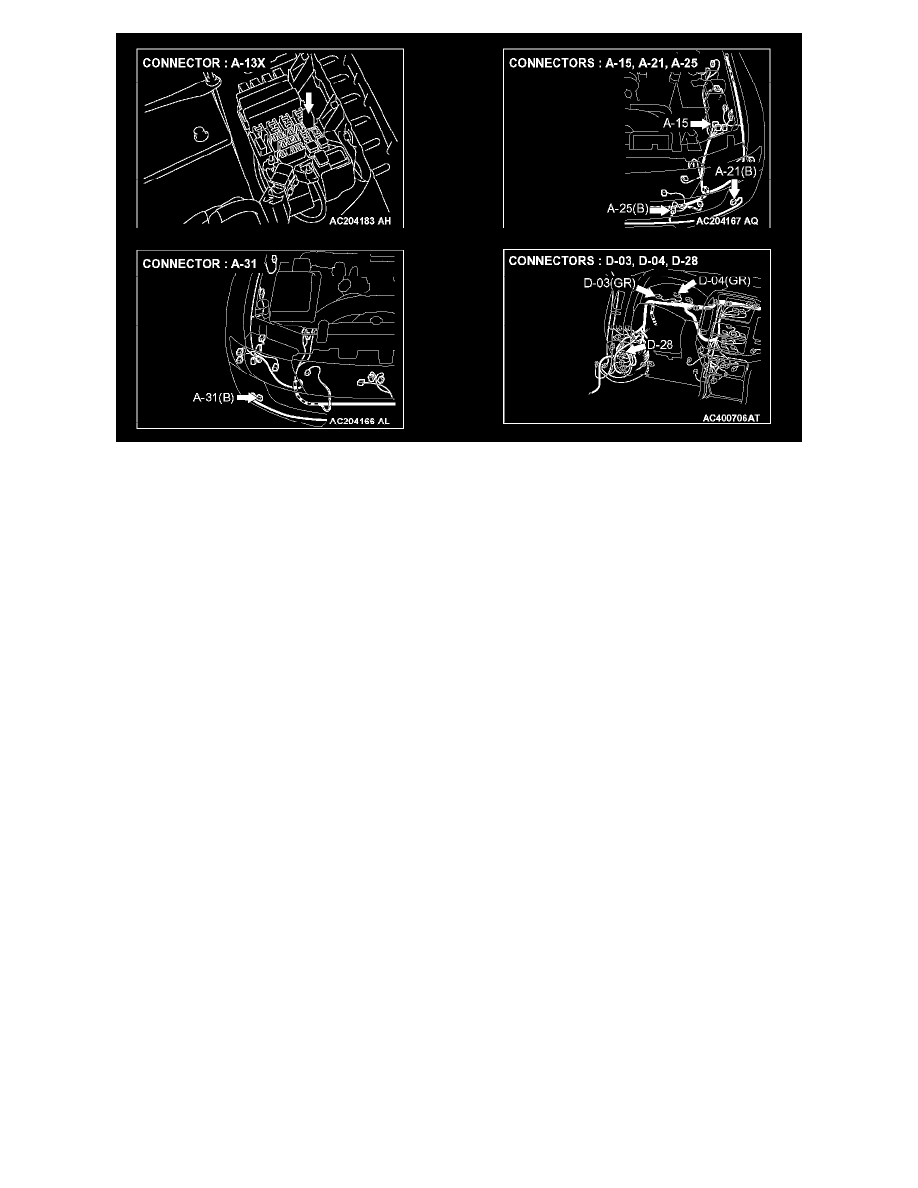

TROUBLESHOOTING HINTS
-
The fog light bulb may be defective
-
The combination meter may be defective
-
The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
DIAGNOSIS
Required Special Tool:
-
MB991223: Harness Set
STEP 1. Verify that the fog lights and the fog light indicator light illuminate.
Q: Which light does not illuminate?
Fog light (LH) : Go to Step 2.
Fog light (RH) : Go to Step 8.
Fog light indicator : Go to Step 14.
Fog lights (both RH and LH) : Go to Step 20.
All lights : Refer to Inspection procedure L-1 "Fog lights do not illuminate when the fog light switch is operated."
STEP 2. Check the fog light bulb (LH).
1. Remove the fog light bulb (LH).
2. Verify that the fog light bulb (LH) is not damaged or burned out.
Q: Is the fog light bulb (LH) in good condition?
YES: Go to Step 3.
