Pathfinder 2WD V6-4.0L (VQ40DE) (2009)
CAUTION:
- Be careful not to damage front timing chain case and crankshaft.
- Press-fit straight and avoid causing burrs or tilting oil seal.
3. Install water pump cover and chain tensioner cover to front timing chain case, if removed.
- Apply a continuous bead of liquid gasket using Tool to front timing chain case as shown.
Use Genuine RTV Silicone Sealant or equivalent.
Tool number : WS39930000
4. Install idler pulley, if removed.

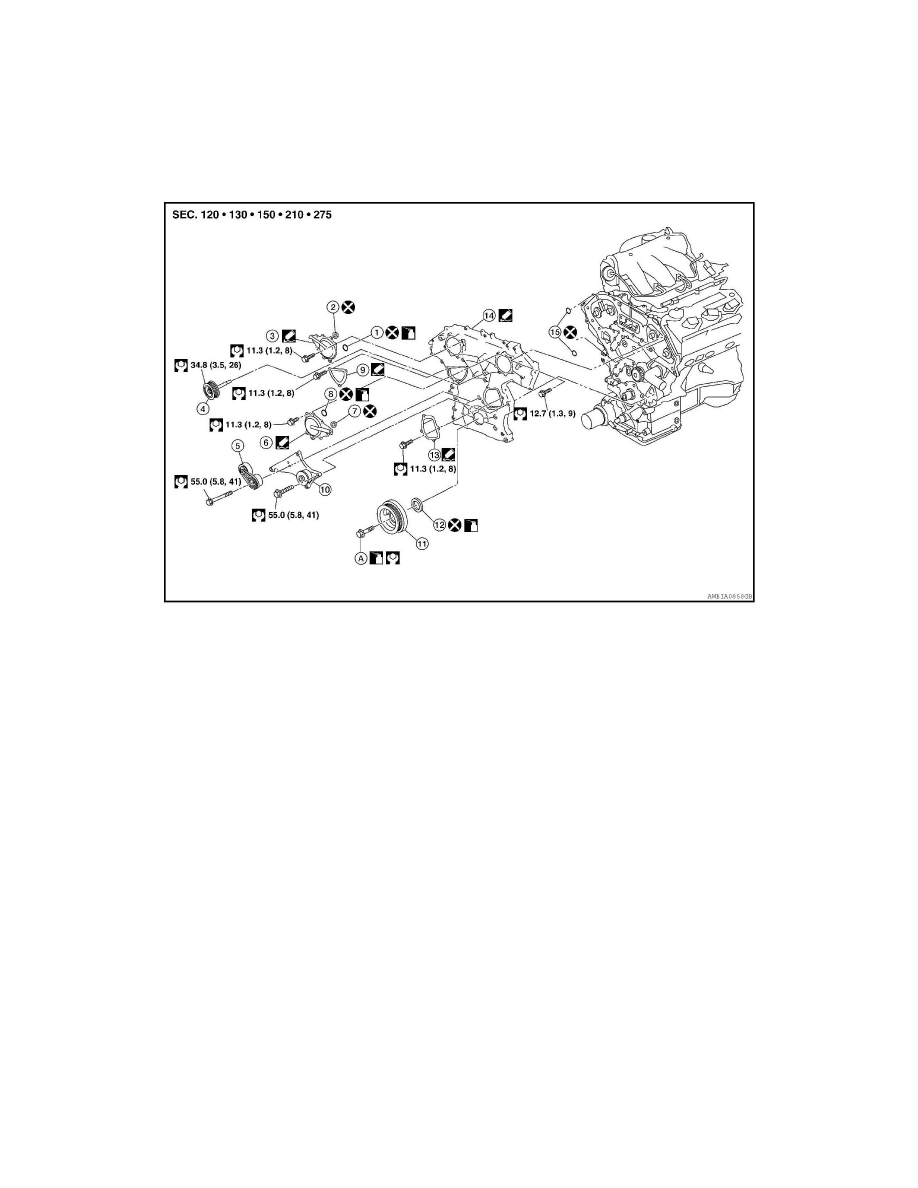

5. Install front timing chain case as follows:
a. Apply a continuous bead of liquid gasket using Tool to front timing chain case back side as shown.
Use Genuine RTV Silicone Sealant or equivalent.
Tool number : WS39930000
