Achieva V6-3300 3.3L (1992)

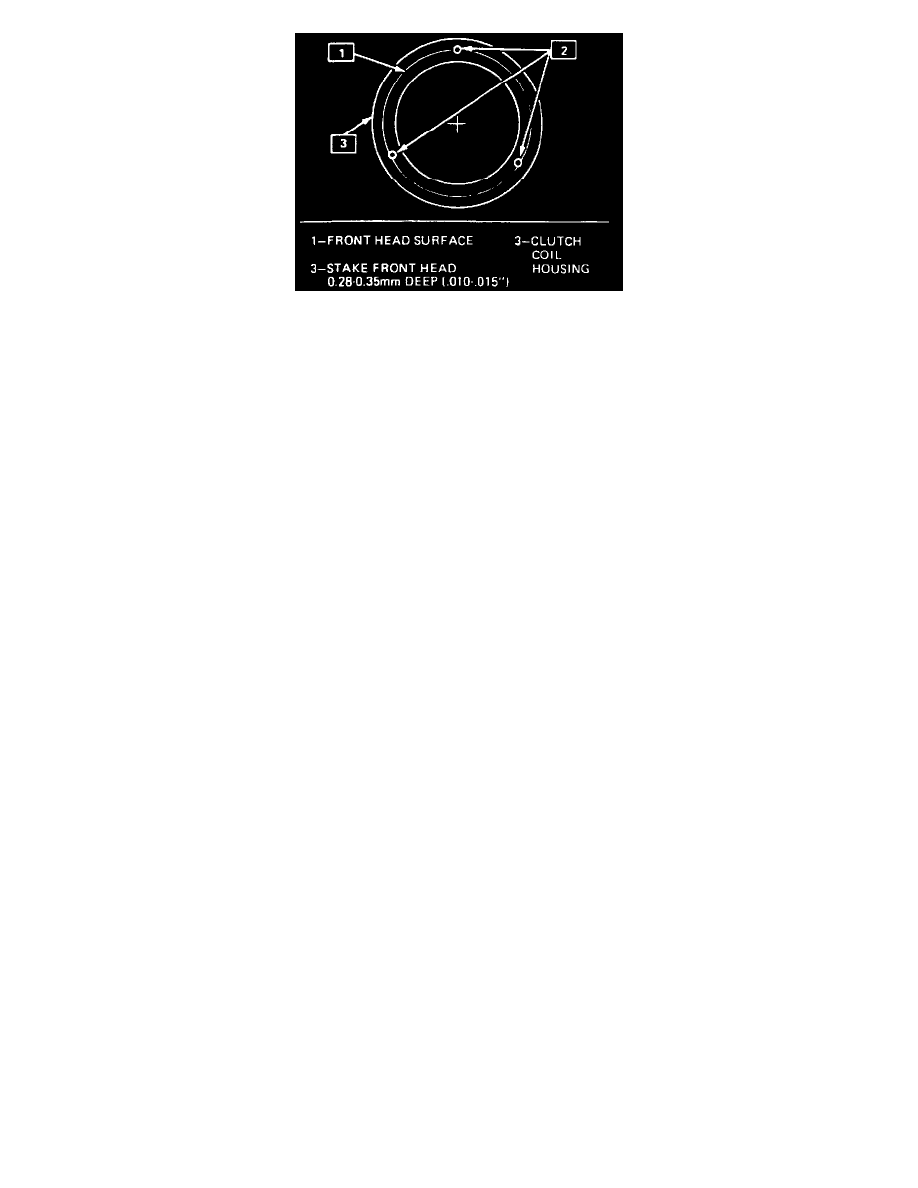

Details Of Stakes In Front Head For Clutch Coil
^
Stake size should be only one half the area of the punch tip and only approximately 0.28-0.35mm (0.10-0.015") deep.
6. Install rotor and bearing assembly and the clutch plate and hub assembly according as described previously.
