Bravada 4WD V8-5.3L VIN P (2004)
Tighten the screws to 2.5 N.m (22 lb in).
3. Install the rubber mats covering the retaining screws.
4. Close the storage bin cover.

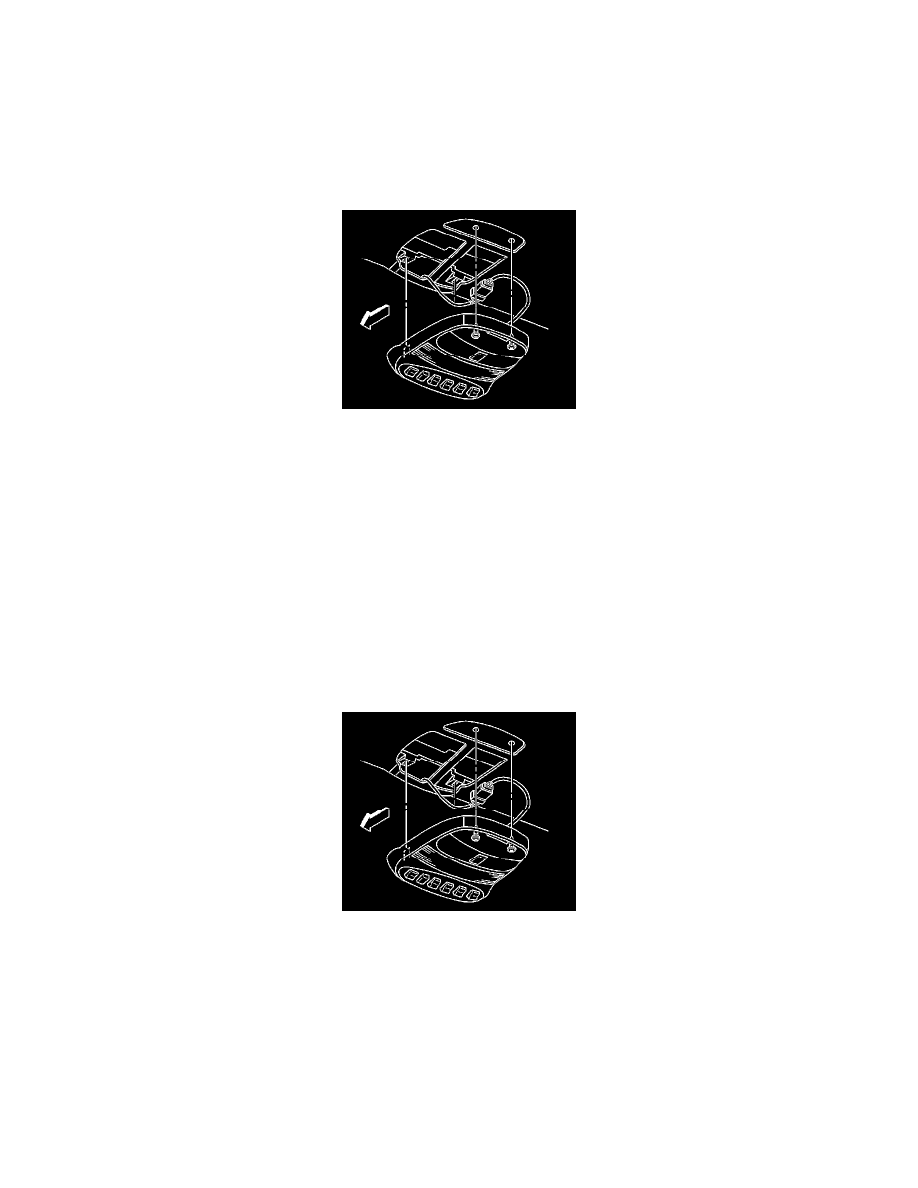

Overhead Console Replacement - Front
CONSOLE REPLACEMENT - OVERHEAD
REMOVAL PROCEDURE
1. Remove the 2 screws that retain the console to the roof panel.
2. Release the front retaining tabs.
3. Lower the console and disconnect the electrical connectors as needed.
4. Remove the console from the vehicle
5. If replacing the console, remove the garage door opener if equipped.
6. If replacing the console, remove the OnStar (R) microphone if equipped.
7. If replacing the console, remove the personal message player/recorder if equipped.
8. If replacing the console, remove the power sunroof switch if equipped.
9. If replacing the console, remove the noise cancellation microphone if equipped.
INSTALLATION PROCEDURE
1. If replacing the console, install the noise cancellation microphone if equipped.
2. If replacing the console, install the power sunroof switch if equipped.
3. If replacing the console, install the personal message player/recorder if equipped.
4. If replacing the console, install the OnStar (R) microphone if equipped.
5. If replacing the console, install the garage door opener if equipped.
6. Position the console to the roof panel.
7. Connect the electrical connectors as needed.
8. Seat the front retaining tabs.
9. Install the 2 screws retaining the console to the roof panel.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten the screws to 1.2 N.m (10 lb in).
