Cutlass Ciera Cruiser V6-3100 3.1L MFI VIN M (1994)
Sensors and Switches
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction
Oil Pressure Switch (For Fuel Pump) / Component Information
Diagrams / Diagram Information and Instructions
Page 760
Page 1

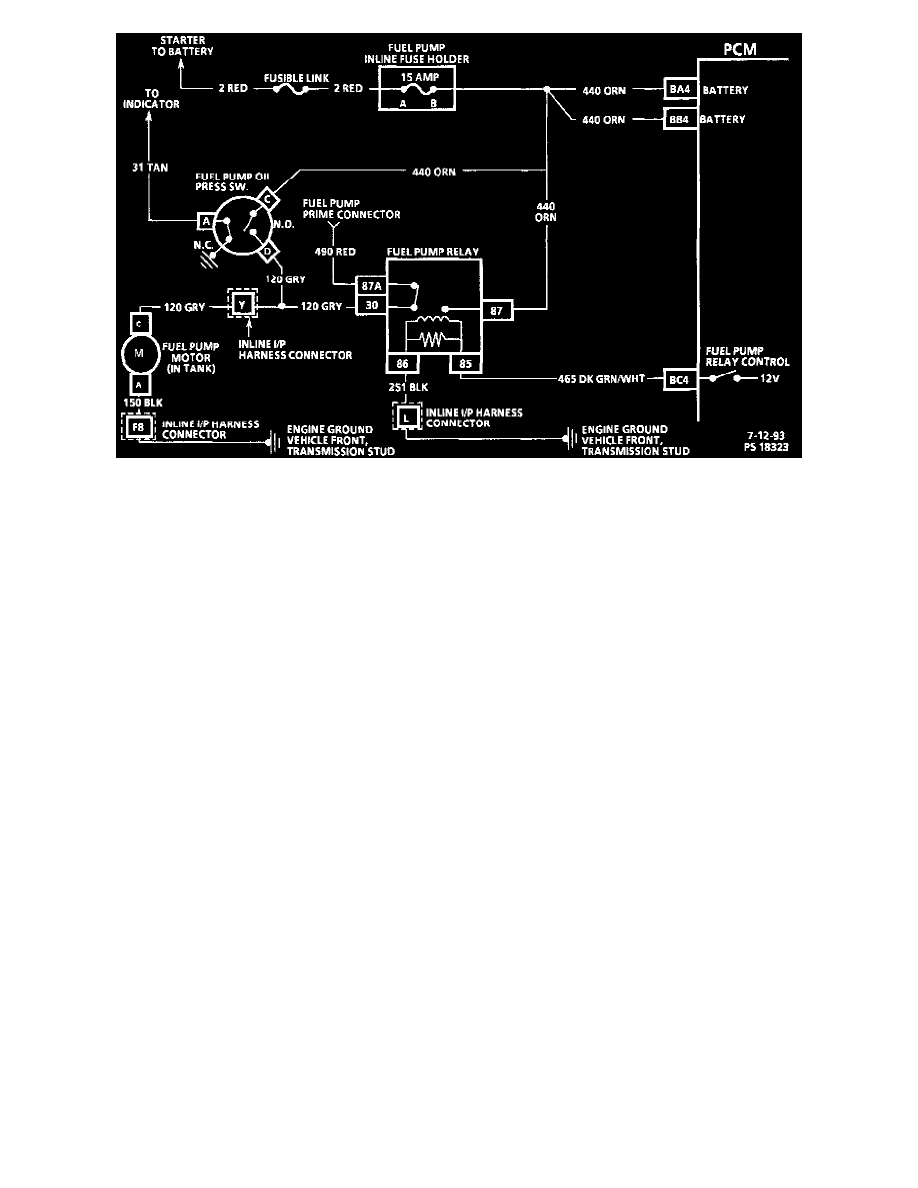

Fuel System Electrical Wiring Schematic
Sensors and Switches
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction
Oil Pressure Switch (For Fuel Pump) / Component Information
Diagrams / Diagram Information and Instructions
Page 760
