Cutlass Ciera Cruiser V6-3100 3.1L MFI VIN M (1994)

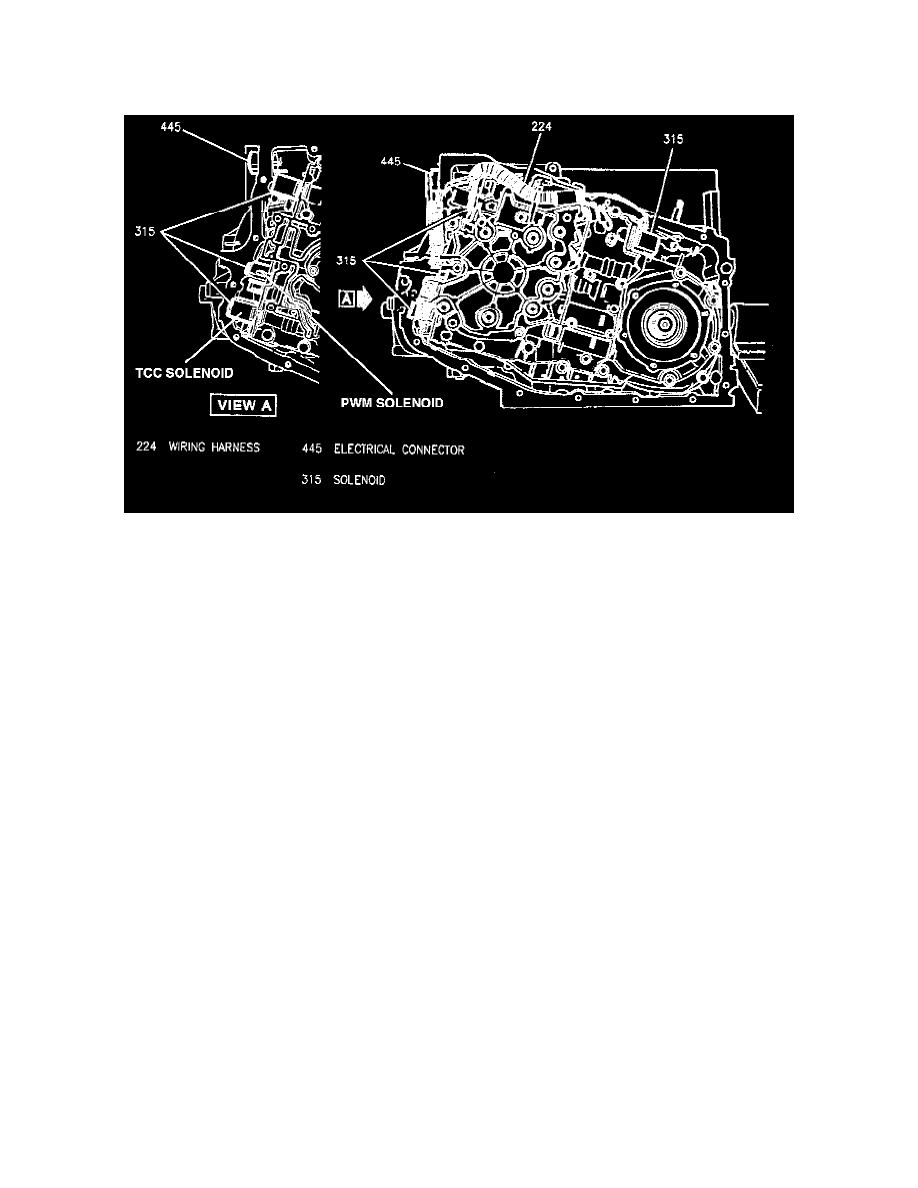

20. Case side cover pan and gasket.
21. Transaxle lines.
CLEAN
^
Case and side cover gasket surfaces.
INSTALL OR CONNECT
1. Transaxle lines.
2. Case side cover pan and gasket.
3. Case side cover bolts/screws and channel plate flange nuts.
4. Left drive axle.
5. Steering shaft to steering gear stub shaft.
6. Jackstands.
7. Raise left side of frame and install four new frame-to-body bolts.
8. Transaxle mounts and brackets.
TIGHTEN
^
Transaxle mount to support nuts/bolts to 48 Nm (35 lb. ft.).
^
Mount to bracket nuts to 30 Nm (22 lb. ft.).
^
Bracket to transaxle front bolt to 48 Nm (35 lb. ft.).
^
New frame to body bolts to 140 Nm (103 lb. ft.).
9. Remove jackstands.
10. Exhaust pipe to manifold.
CAUTION: When installing the intermediate shaft make sure the shaft is seated prior to pinch bolt installation. If the pinch bolt is inserted
into the coupling before shaft installation, the two mating shafts may disengage.
11. Pinch bolt at intermediate steering shaft.
12. Left inner fender splash shield.
13. Left lower ball joint.
14. Left front tire and wheel.
15. Lower vehicle.
16. Shift control cable bracket.
17. Shift control cable to transaxle.
18. Torque struts at engine mounts.
19. Remove J 8467-A and J 36462.
20. Air cleaner and resonator.
ADJUST
^
Fluid level.
INSPECT
^
For proper completion of repairs.
^
For proper fluid level.
^
For fluid leaks.
