Cutlass Ciera FWD V6-181 3.0L (1984)

Page 1
background image

Radiator Cooling Fan Motor: Testing and Inspection

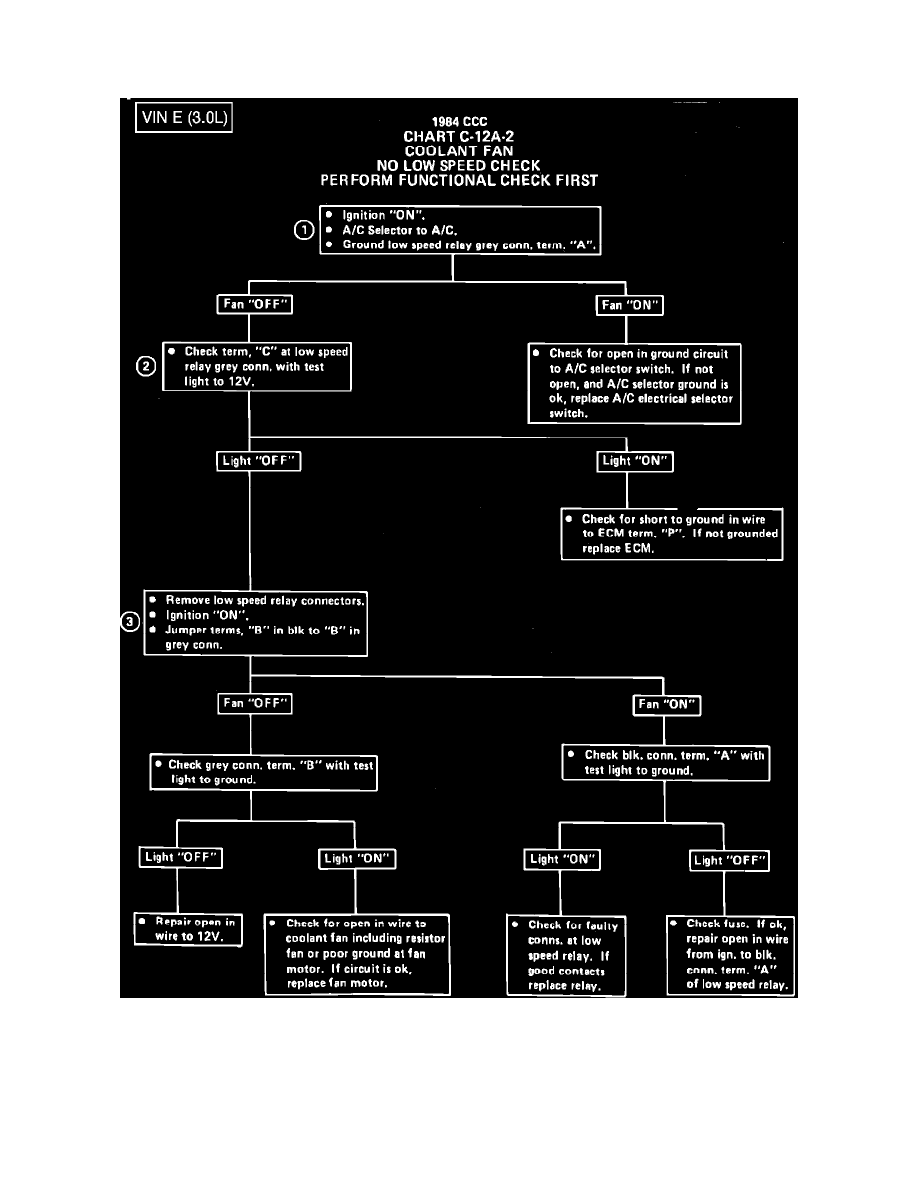

Chart C-12A-2 Coolant Fan No Low Speed Check

Fig. 021 - Chart C-12A-2 Coolant Fan No Low Speed Check.
