Colt Vista 2WD L4-1795cc 1.8L SOHC (1992)
1.

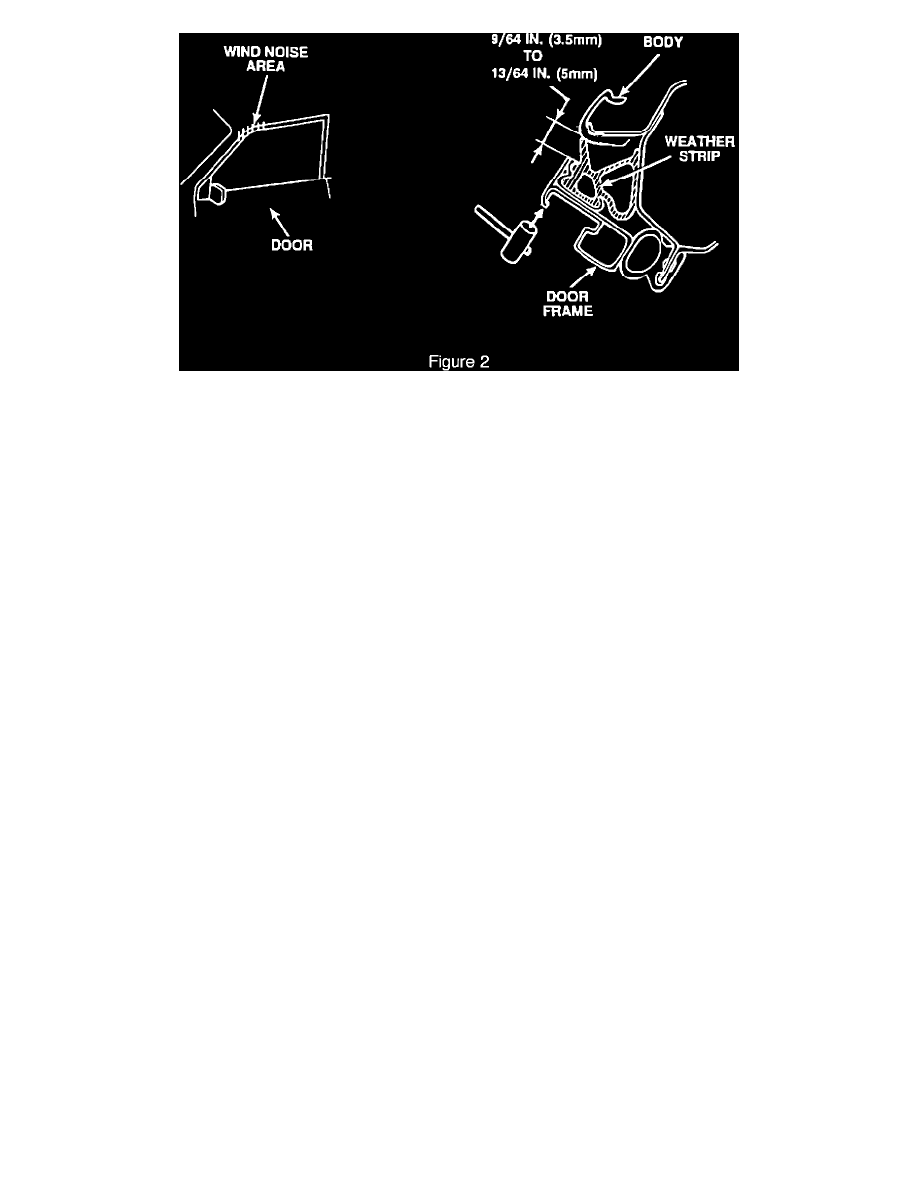

Carefully strike the window frame in the area shown using a rubber mallet to achieve the desired gap of 9/64 in. (3.5 mm) to 13/64 in. (5 mm) (See
Fig. 2).
2.
Road test the vehicle at highway speeds to determine if the wind noise has been eliminated. If the noise has been eliminated, the procedure is
complete. If the noise has not been eliminated, replace the weatherstrip.
Weather Strip Replacement
Refer to the 1992 Summit Wagon/Colt Vista Manual, No. 81-270-2113, page
23A-95 for the weatherstrip replacement procedure.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No.
23-51-10-94 (Right) . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 Hrs.
23-51-10-95 (Left) . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 Hrs.
FAILURE CODE:
8X - Wind Noise
