Grand Voyager L4-2.4L DOHC (1996)
Alignment: Service and Repair
Adjustment
CASTER
The caster angle on these vehicles cannot be adjusted.
CAMBER
The camber angle on these vehicles cannot be adjusted.

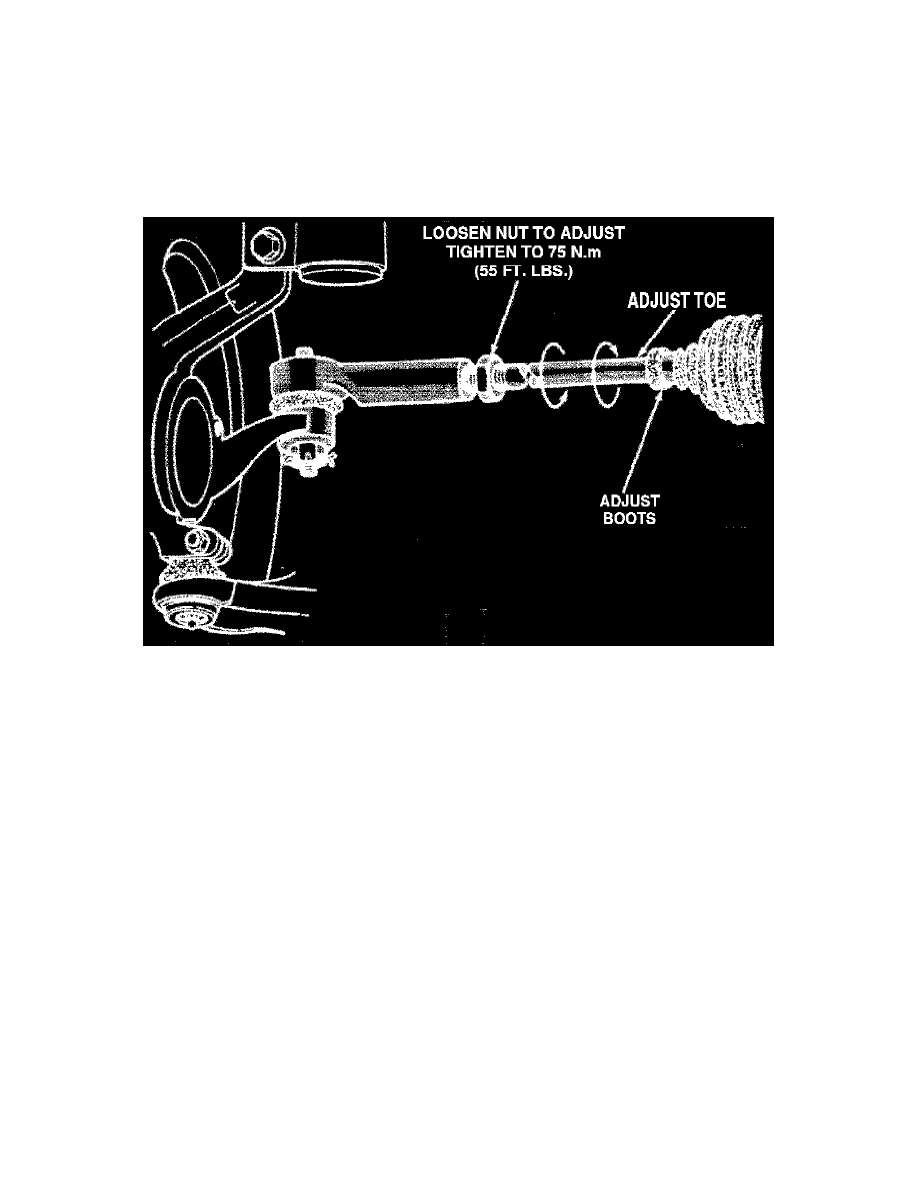

Fig. 2 Toe-in Adjustment
TOE-IN
To adjust toe-in, center steering wheel and hold in position with a suitable tool. Loosen tie rod locknuts and rotate rod, to adjust toe-in to
specifications. Use care not to twist steering gear rubber boots. Torque tie rod locknuts to 55 ft. lbs. Adjust position of steering gear rubber boots.
Remove steering wheel holding tool.
