G5 L4-2.2L (2007)
Fuel Return Line: Service and Repair
Fuel Hose/Pipes Replacement - Chassis
Removal Procedure
1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief.

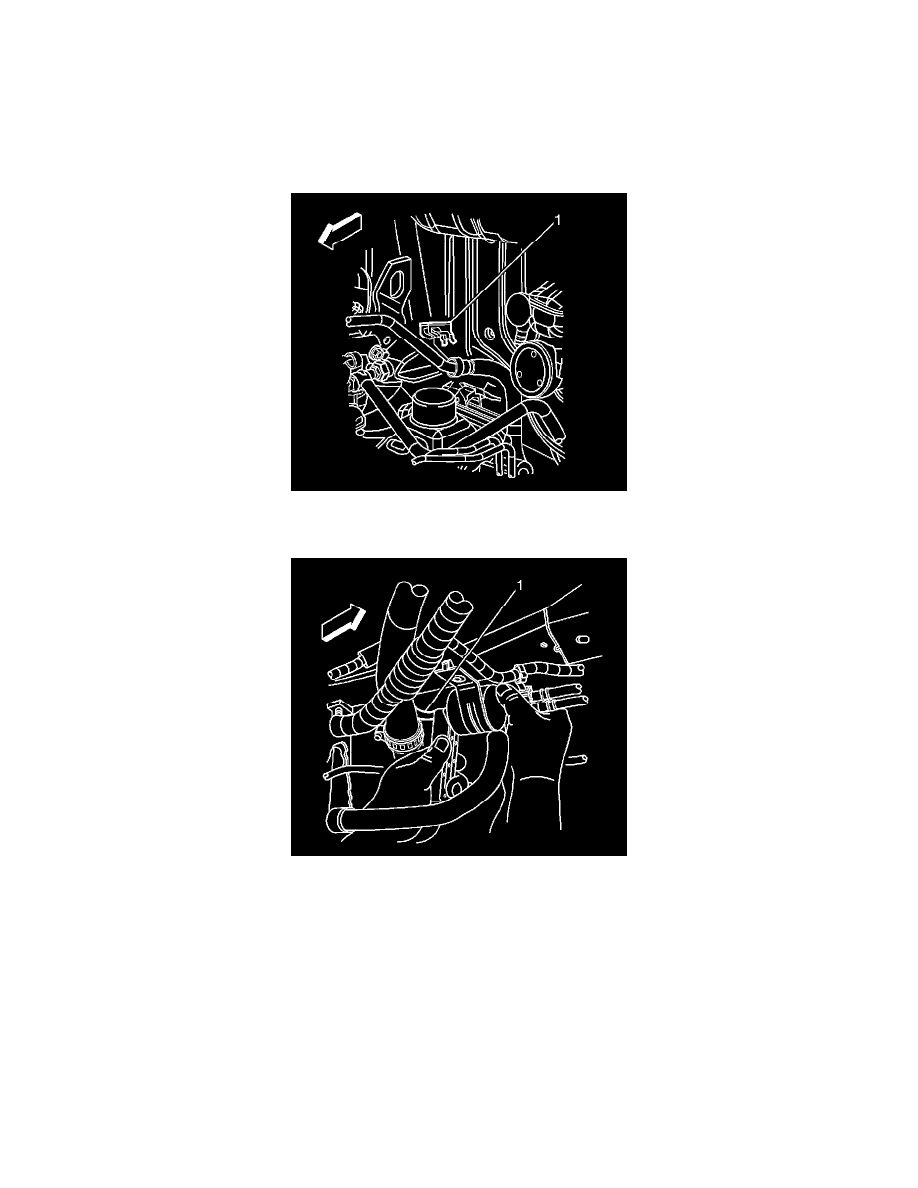

2. Remove the pipe retaining clip (1) from the fuel feed pipe.
3. Disconnect the fuel feed pipe from the engine fuel rail.
4. Cap or plug the fuel pipe and the engine fuel rail to prevent contamination.
5. Raise and support the vehicle. Refer to Vehicle Lifting.
6. Remove the evaporative emission (EVAP) canister for pipe removal access.
7. Disconnect the fuel filter from the engine feed fuel pipe.
