Grand AM L4-121 2.0L (1988)
Dash Board / Instrument Panel: All Technical Service Bulletins
Dash Pad - Warping
Bulletin Number:
90-8-19
Reference Number:
878310R
Publish Date:
5/90
Subject:
DASH PAD WARPING BETWEEN DEFROSTER DUCT AND WINDSHIELD - PIERCE PAD AND INSTALL CLIP
Models
Affected:
1982-90 SUNBIRD AND 1985-90 GRAND AM MODELS
Some Sunbird and Grand Am vehicles may exhibit a condition where the dash pad bows up between the defroster duct and the windshield. This
condition may be repaired using the following procedure:
1.
Remove the defroster grille.
2.
Loosen the two (2) screws in the defroster opening.
3.

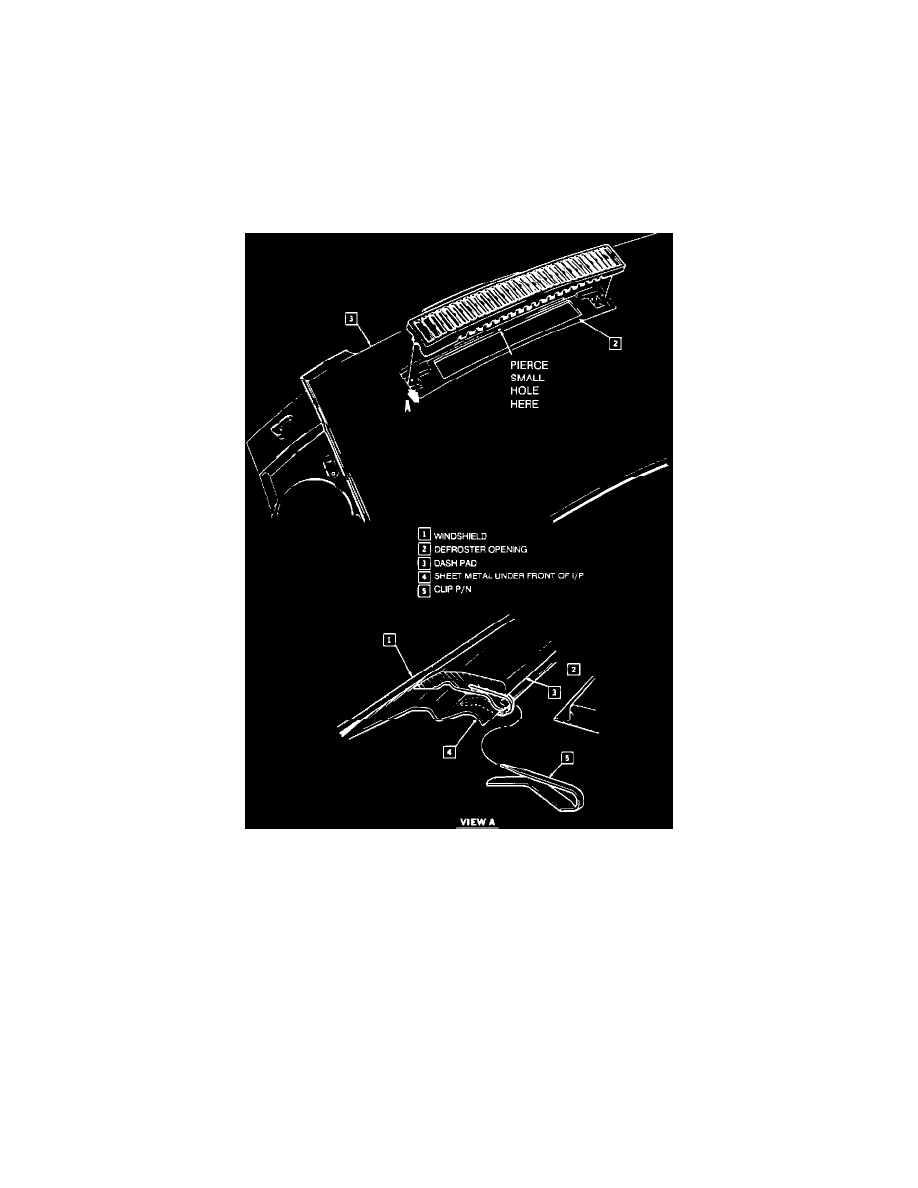

Use an awl or other sharp, pointed tool to pierce a very small hole in the dash pad as shown in the illustration. The hole should be centered (left to
right) in the duct opening, and positioned as shown in view "A" of the illustration so that the defroster grille will cover the hole when re-installed.
4.
Secure the dash pad to the sheet metal lip by installing a clip P/N 22551474 as shown in the illustration. When properly installed, the clip should
be positioned so that the wide "leg" of the clip is under the sheet metal lip and the narrow, pointed "leg" of the clip is inserted in the dash pad, just
above the pad substrate, (backing) material. Refer to the illustration. Parts are currently available from GMSPO.
NOTE:
It may become necessary to install one or two additional clips to properly position the pad.
5.
Tighten the two (2) previously loosened dash pad screws.
