Vibe L4-1.8L VIN L (2003)

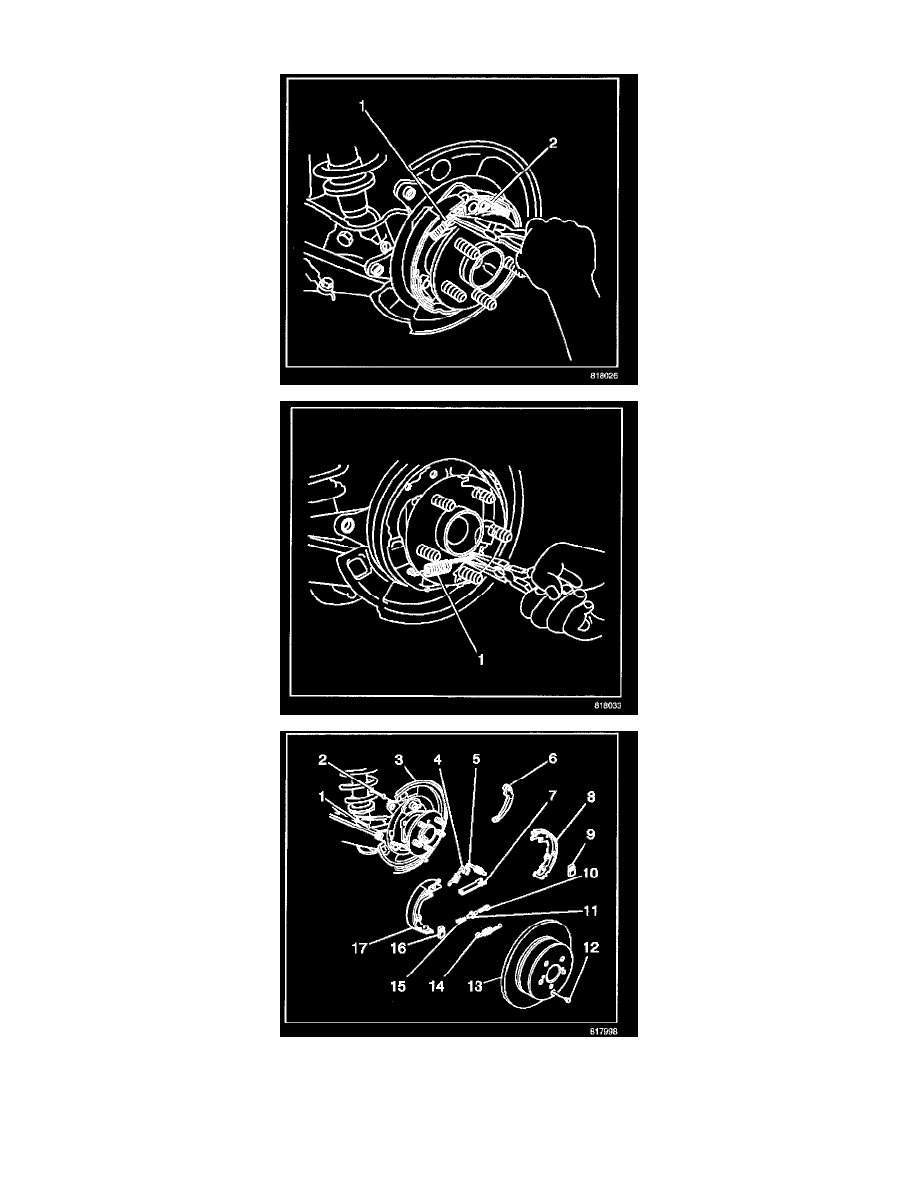

3. Install the park brake shoe lever (2) to the park brake cable (1)
4. Install the park brake shoe lever (6) and the rear shoe (8).
5. Install the pin (2) and the hold-down spring (9) to the rear shoe.
6. Install the adjuster (10,11,15) and the adjuster strut (7) to the rear shoe.
7. Install the front shoe (17).
8. Install the pin (1) and the hold-down spring (16) to the front shoe.
9. Connect the adjuster to the front shoe.
10. Install the tension spring (1).
11. Install the return springs (1 ,2).
12. Install the rear disc. Refer to Brake Rotor Replacement - Rear in Disc Brakes.
13. Adjust the park brake. Refer to Park Brake Adjustment (Drum Brakes) or Park Brake Adjustment (Disc Brakes).See: Parking Brake
Cable/Adjustments
