Vibe L4-1.8L VIN L (2003)

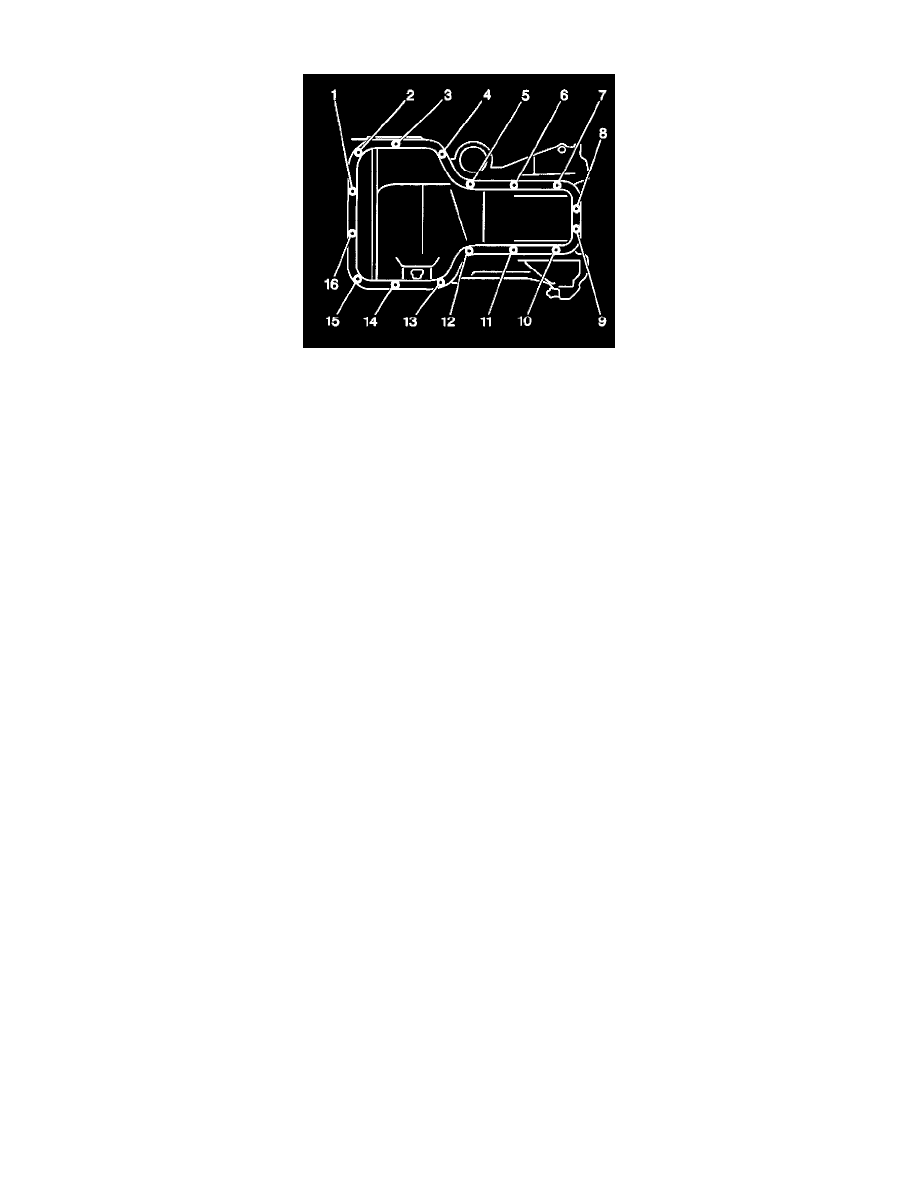

3. Use the following components to secure the engine oil pan:
^
12 bolts (2, 4-13, 15)
^
Two nuts (1, 3, 14, 16)
^
Tighten the engine oil pan bolts and the nuts to 9 Nm (80 inch lbs.).
4. Install flywheel cover.
5. Install the left side engine splash shield.
6. Install the engine oil drain plug and the gasket.
^
Tighten the engine oil drain plug to 35 Nm (26 ft. lbs.).
7. Lower the vehicle.
8. Fill the engine oil.
9. Inspect the oil pressure.
