Front Bumper Shock Absorber|Service and Repair|Page 3504 > < Front Bumper Shock Absorber|Service and Repair

Cayman S (987) F6-3.4L (2008)

Page 2
background image

2. Remove the impact pipe -2- and seal -3-.

Installing front bracket (impact pipe)

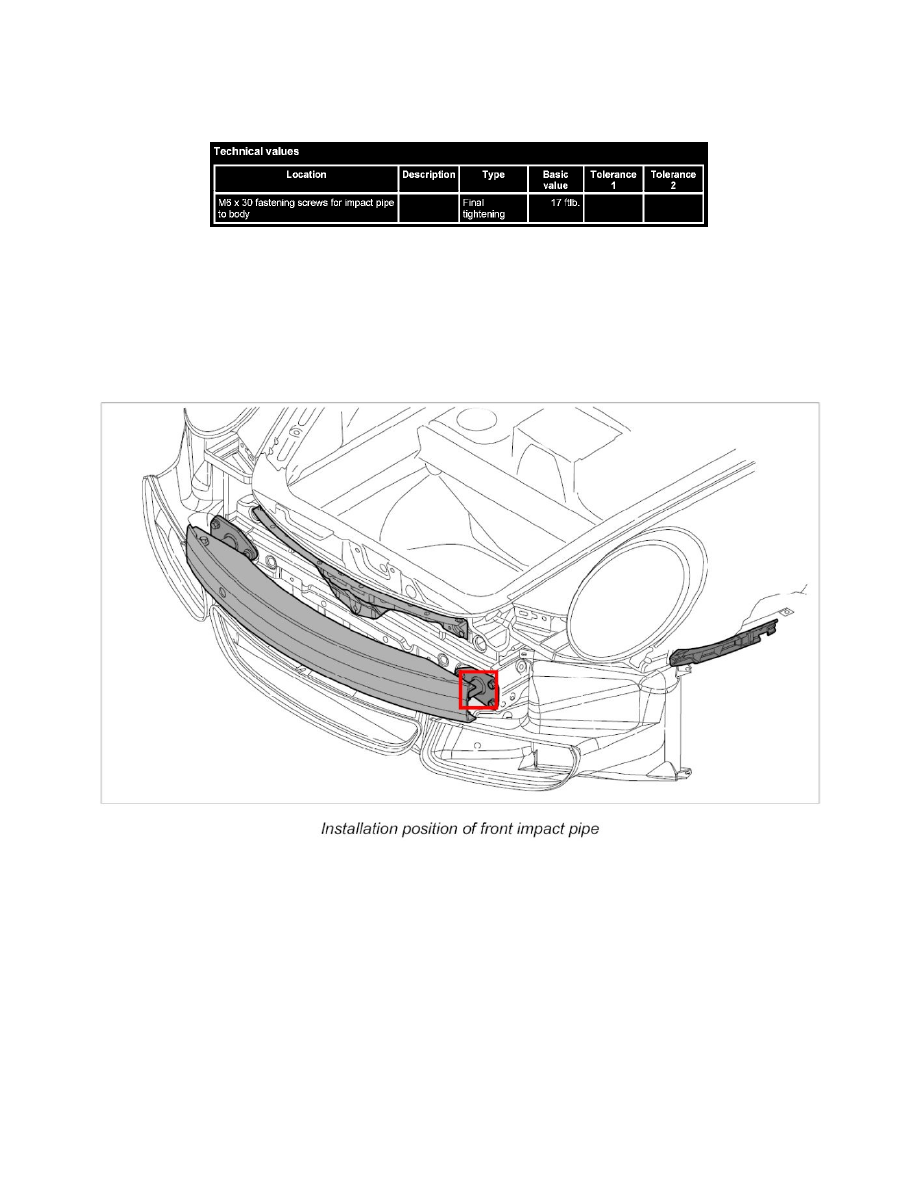

Install front impact pipe

1. Position the seal impact pipe -3- and impact pipe -2-.
