9-7X L6-4.2L (2008)
Brake Light Switch: Locations
Lighting Systems Component Views

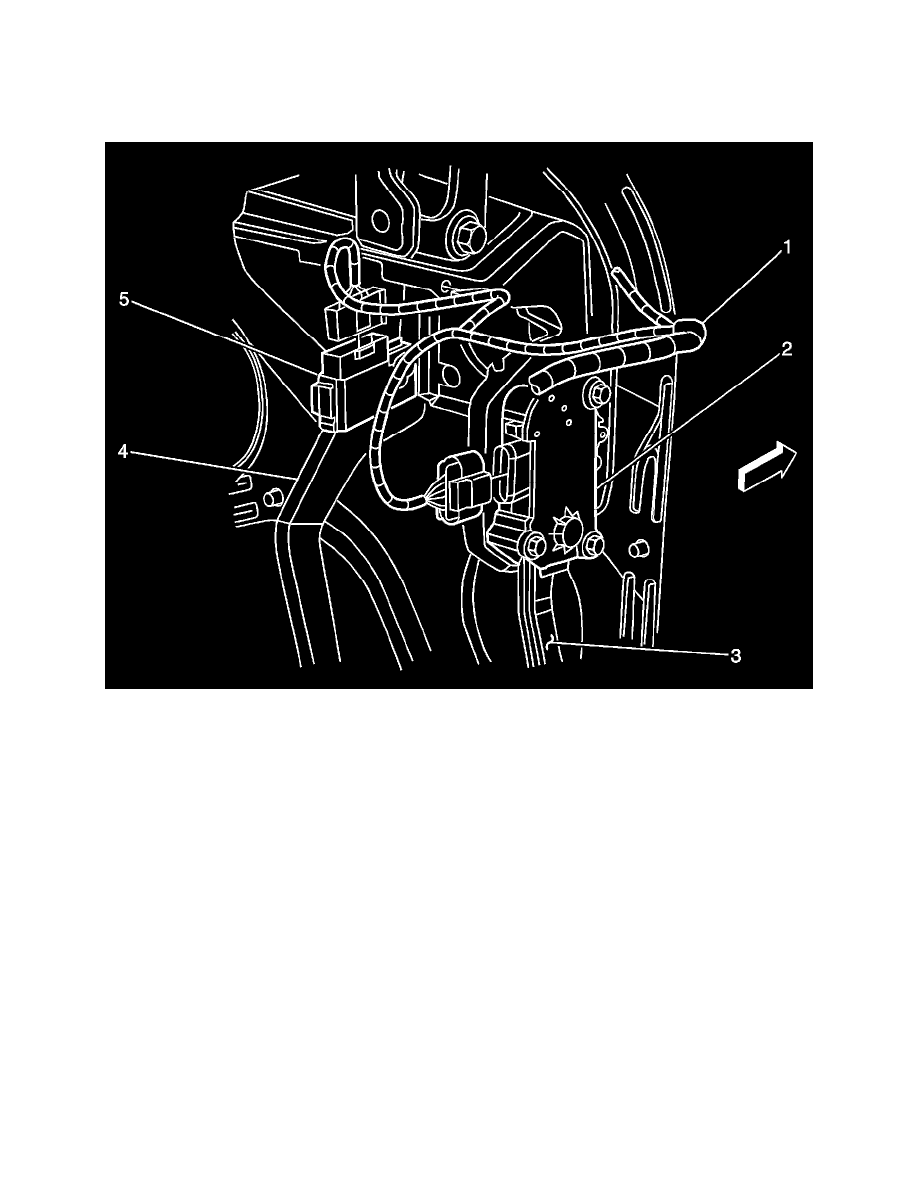

Accelerator and Brake Pedals
1 - Instrument Panel Harness
2 - Accelerator Pedal Position (APP) Sensor
3 - Accelerator Pedal
4 - Brake Pedal
5 - Stop Lamp Switch
Brake Light Switch: Locations
Lighting Systems Component Views
Accelerator and Brake Pedals
1 - Instrument Panel Harness
2 - Accelerator Pedal Position (APP) Sensor
3 - Accelerator Pedal
4 - Brake Pedal
5 - Stop Lamp Switch
