900 S Convertible L4-2290cc 2.3L DOHC EFI (1997)
Technical Service Bulletin # 811-1859
Date: 980701
Convertible Top Cloth - Premature Wear
900
SERVICE INFORMATION
SI No. 811-1859
PI No.
Date July 1998
Distr. All
Wear marks on soft-top cloth
Cars affected

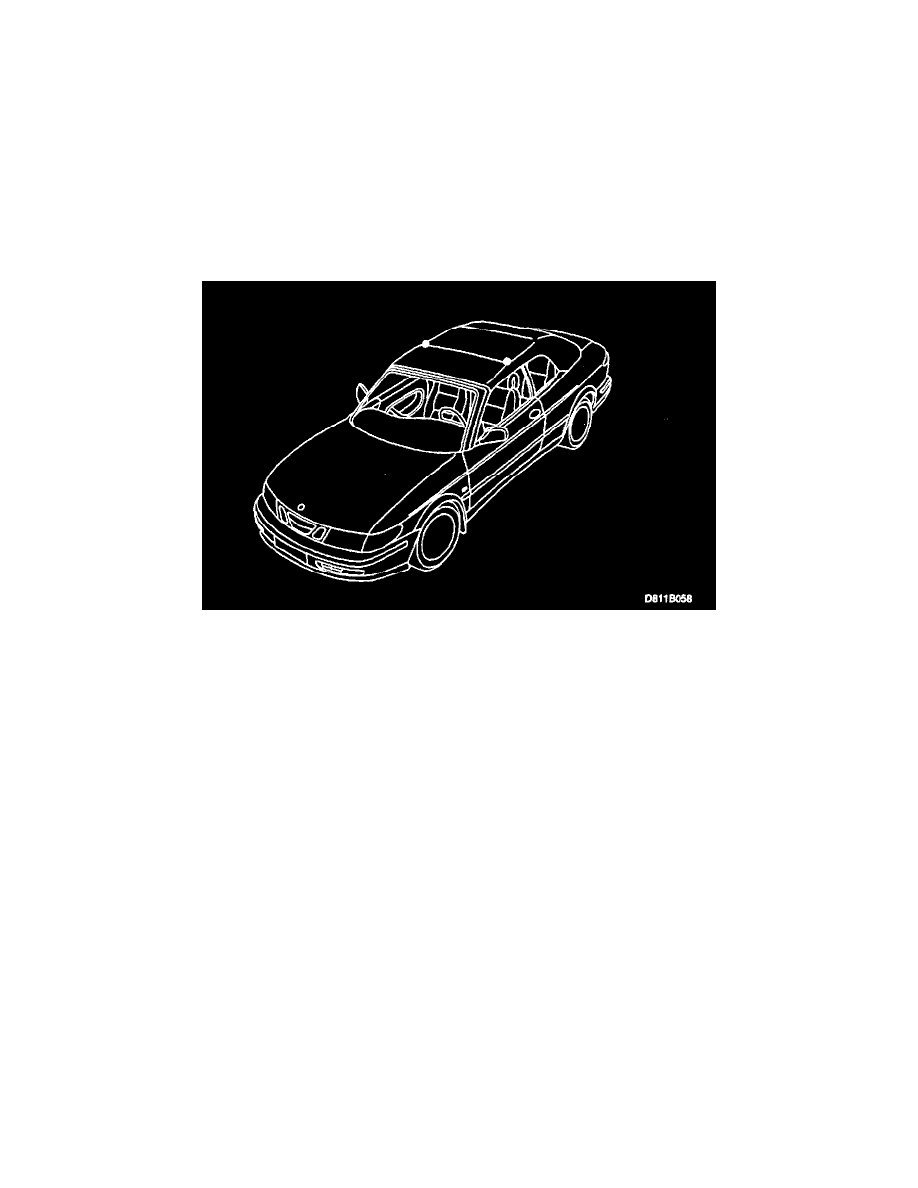

Saab 900 CV M97 - M98
Background
There is a risk of the soft-top cloth being folded incorrectly when lowered. An incorrectly folding top will have triangular shaped folds pointing toward
the outside of the car near the 2nd bow. These triangular folds may then rub against the bottom of the tonneau cover causing it to be damaged.
When raised, any damage can be seen as chafe marks on each side of the soft top, just behind the second bow.
These measures should be taken after a customer complaint.
Parts required
51 10 457 Chafing guard (2 pcs) (CA: 30577465)
48 56 860 Pop rivets (2 pcs) (CA: 30569755)
48 56 878 Washer (2 pcs) (CA: 30569756)
Warranty/Time Information
Failed Object: 81111
Fault/Reason code: 33
Location code: 9
Warranty Type (US): 01
