900 S Convertible L4-2290cc 2.3L DOHC EFI (1997)
Ventilation Fan: Service and Repair

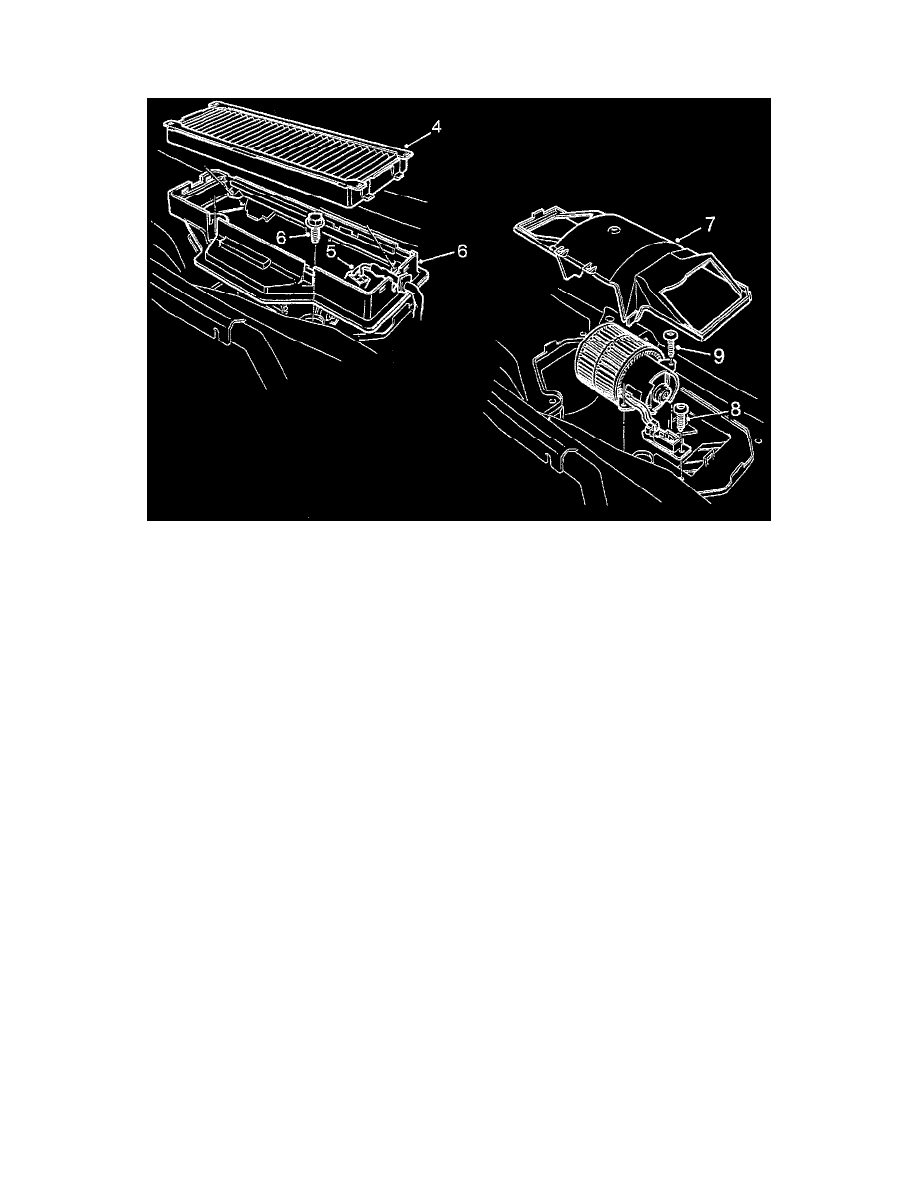

Front Fan Motor Removal
1. Remove the wiper arms.
2. Remove the cover over the bulkhead.
3. Remove the wiper unit.
4. Remove the fresh-air filter.
5. Unplug the ventilation fan's connector.
6. Remove the fresh-air filter frame.
7. Remove the ventilation fan cover.
8. Remove the screw securing the connector.
9. Remove the screws and lift out the ventilation fan.
