Astra L4-1.8L (2009)
Front Door Exterior Handle: Service and Repair
Front Side Door Outside Handle Housing Replacement (Coupe)
Front Side Door Outside Handle Housing Replacement (Coupe)
Removal Procedure
1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) (See: Front Door Panel/Service and Repair
)Front Side Door Trim Panel Replacement (Sedan) (See: Front Door Panel/Service and Repair).

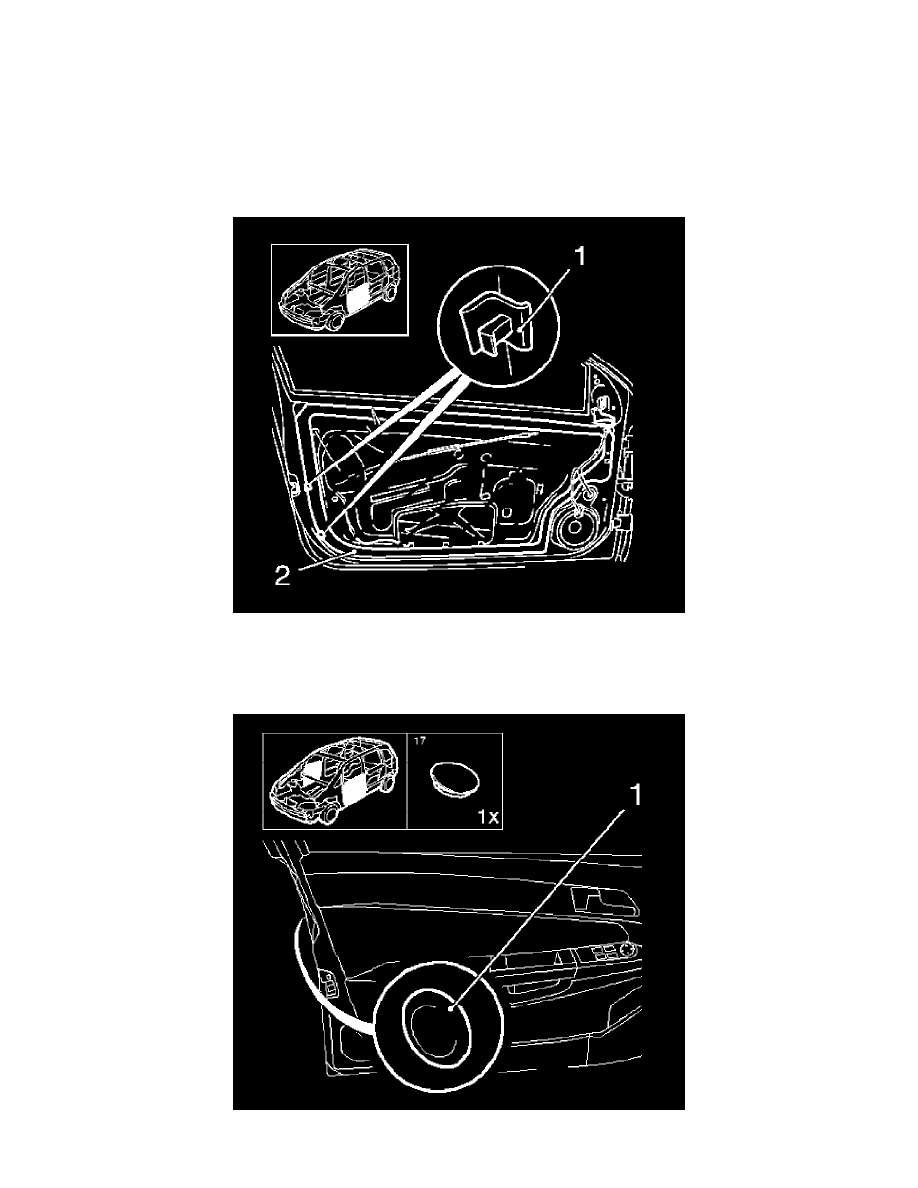

2. Partly loosen the water vapor barrier (2).
*
Remove the 2 holding angles (1).
*
Remove the 2 pins.
3. Remove the outside door handle assembly (1) aperture rubber grommet.
