ION L4-2.4L (2007)
2. Install the NEW manual transaxle flywheel bolts, if equipped.
Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J45059.

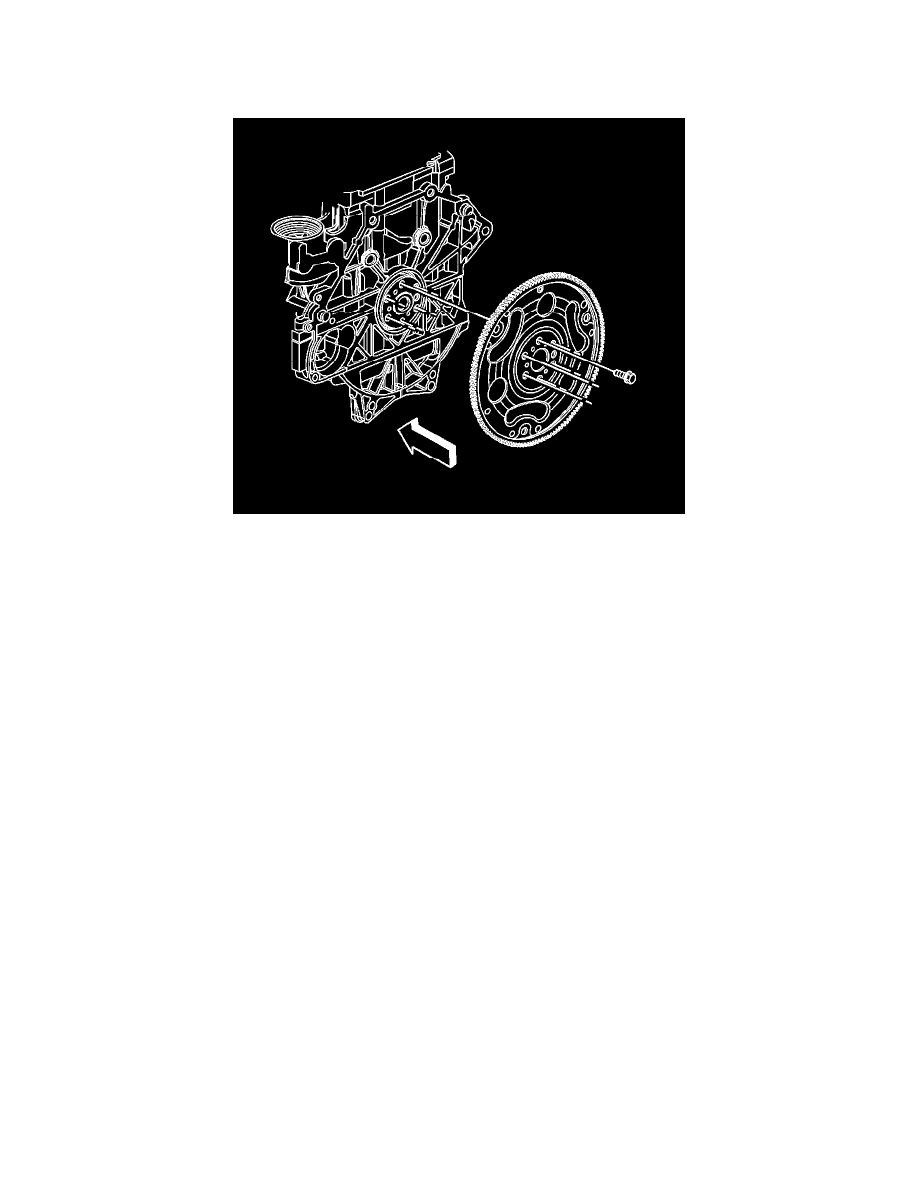

3. Install the automatic transaxle flywheel, if equipped.
4. Install the NEW automatic transaxle flywheel bolts, if equipped.
Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J45059.
5. Remove the J38122-A.
6. If equipped with a manual transaxle, install the clutch.
7. If equipped with a automatic transaxle, install the transaxle.
