Sky L4-2.4L (2007)

Page 1
background image

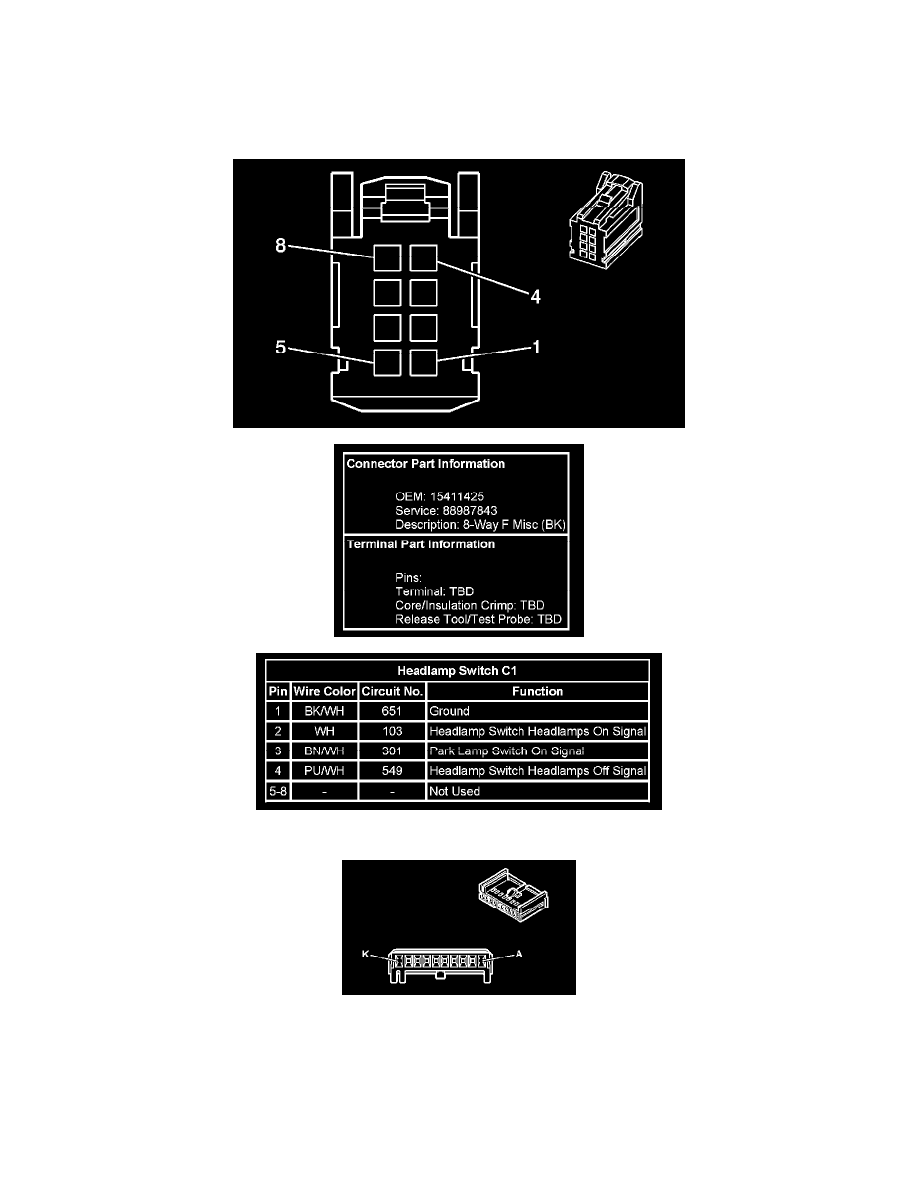

Headlamp Switch: Diagrams

Lighting Systems Connector End Views


Headlamp Switch C1

Headlamp Switch C2
