VUE FWD V6-3.5L (2008)

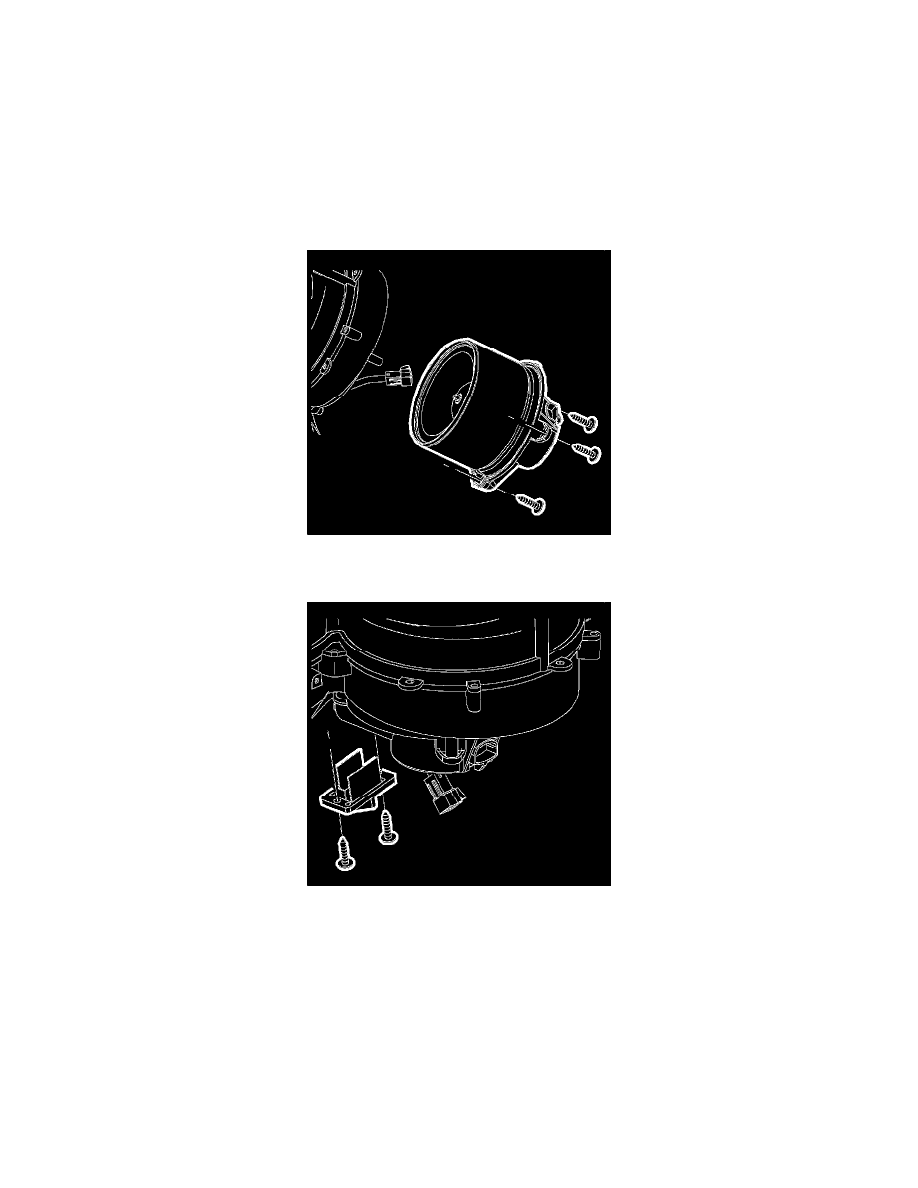

4. Install the blower motor control module to the blower case assembly.
5. Install the blower motor control module screws to the blower case assembly.
Tighten the screws to 1.5 N.m (13 lb in).
6. Install the blower motor to the blower case assembly.
7. Install the blower motor screws to the blower case assembly.
Tighten the screws to 1.5 N.m (13 lb in).
8. Install the air inlet assembly. Refer to Air Inlet Assembly Replacement (See: Air Duct/Service and Repair/Air Inlet Assembly Replacement) .
9. Install the evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement (See: Evaporator Case/Service and
Repair) .
10. Install the HVAC module. Refer to HVAC Module Assembly Replacement (See: HVAC Module Assembly Replacement) .
