VUE FWD V6-3.6L Hybrid (2009)
Body / Frame Mount Bushing: Service and Repair
Drivetrain and Front Suspension Frame Insulator Replacement
Special Tools
CH-47672-A Frame Insulator Remover/Installer
Removal Procedure
1. Remove the frame from the vehicle. Refer to Frame Replacement (4T45-E Transmission) (See: Subframe/Front Subframe/Service and
Repair/Frame Replacement (4T45-E Transmission))Frame Replacement (6T70 Transmission) (See: Subframe/Front Subframe/Service and
Repair/Frame Replacement (6T70 Transmission))Frame Replacement (2MT70 Transmission) (See: Subframe/Front Subframe/Service and
Repair/Frame Replacement (2MT70 Transmission)).

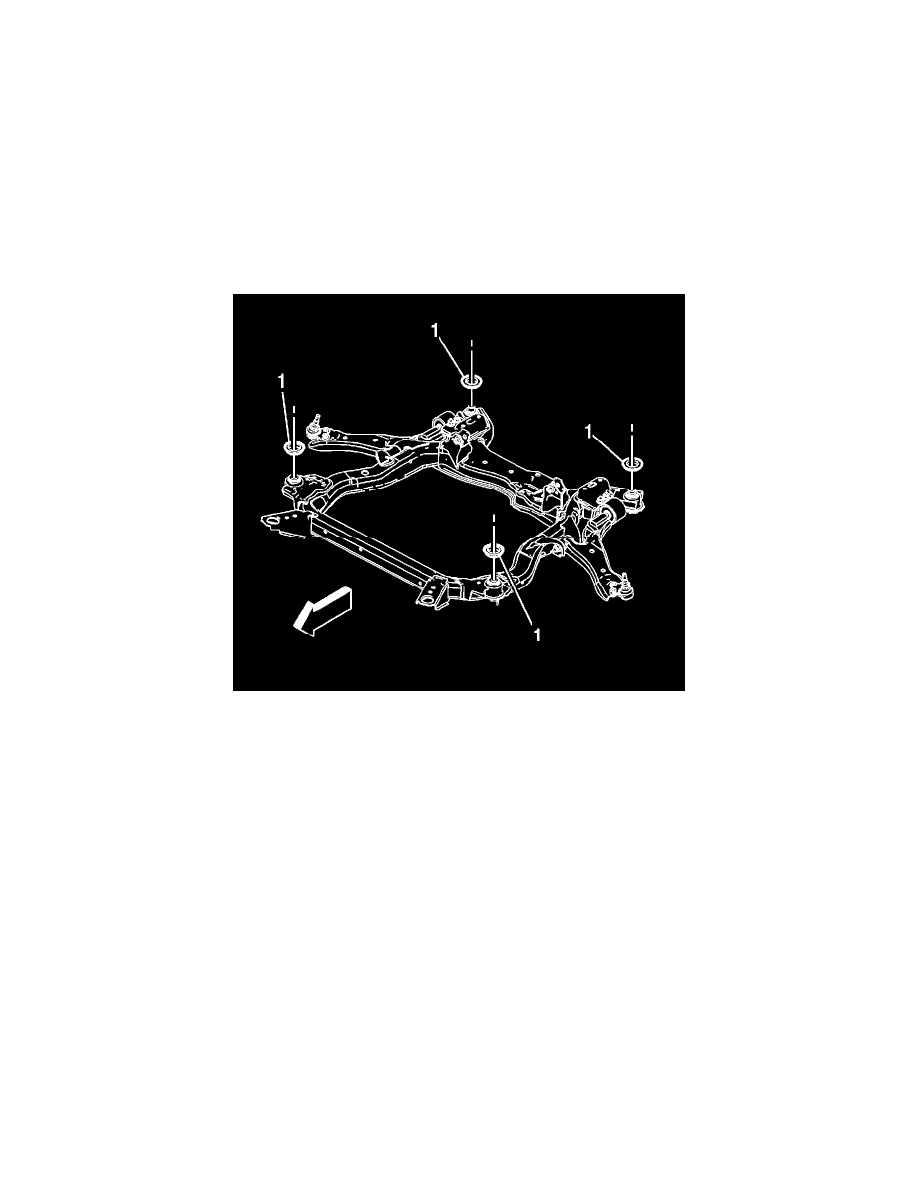

2. Remove the upper frame insulator (1)
